Display Diagnosis

WARNING: This page is about a different car, the 2008 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

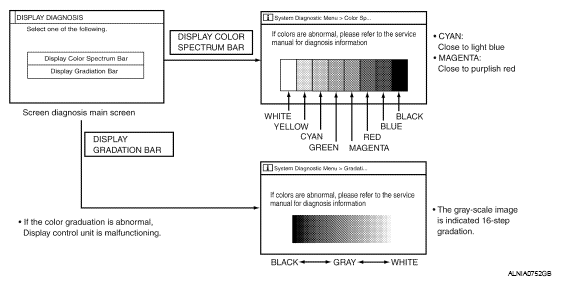

Fig 1: Screen Display - Color Code

Courtesy of NISSAN MOTOR CO., U.S.A.

When RGB signal error occurred in the RGB system, tone of the color bar will change as follows.
R (red) signal error : Screen looks bluish

G (green) signal error : Screen looks reddish

B (blue) signal error : Screen looks yellowish
When the color of the screen looks unusual, refer to , "DESCRIPTION ", , "DESCRIPTION " and , "DESCRIPTION ".

Fig 1: Screen Display - Color Code

Courtesy of NISSAN MOTOR CO., U.S.A.

When RGB signal error occurred in the RGB system, tone of the color bar will change as follows.

R (red) signal error : Screen looks bluish

G (green) signal error : Screen looks reddish

B (blue) signal error : Screen looks yellowish

When the color of the screen looks unusual, refer to , "DESCRIPTION ", , "DESCRIPTION " and , "DIAGNOSIS SYSTEM (BLUETOOTH CONTROL UNIT)DESCRIPTION ".
