Shift Fork And Fork Rod

WARNING: This page is about a different variant/trim than selected.

Fig 1: Exploded View Of Shift Fork And Fork Rod (1 Of 2) With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

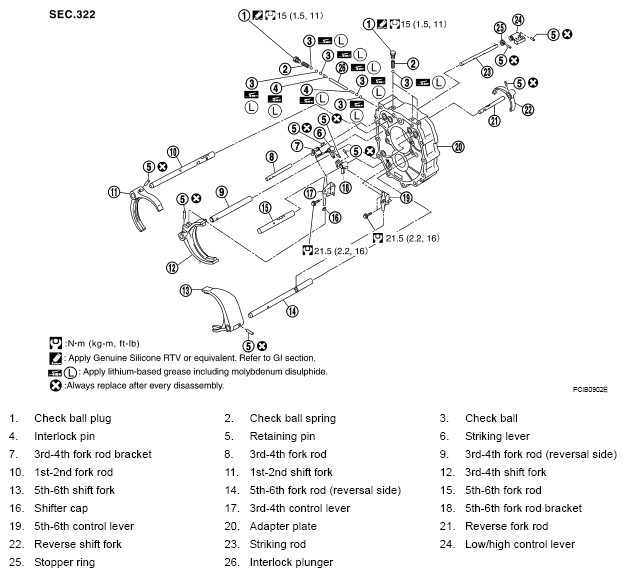

Fig 2: Exploded View Of Shift Fork And Fork Rod (2 Of 2) With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.
