Cross-Sectional View
WARNING:
This page is about a different variant/trim than selected.

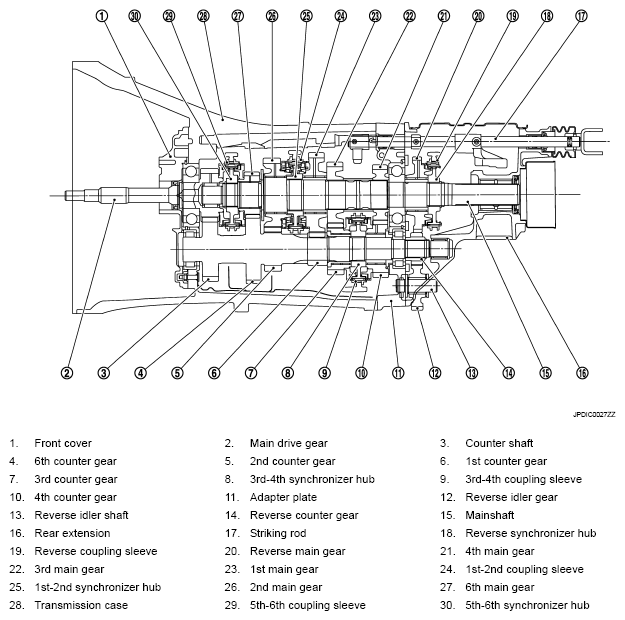

Fig 1: Cross-Sectional View Of M/T System
Courtesy of NISSAN MOTOR CO., U.S.A.
