Exploded View

WARNING: This page is about a different variant/trim than selected.

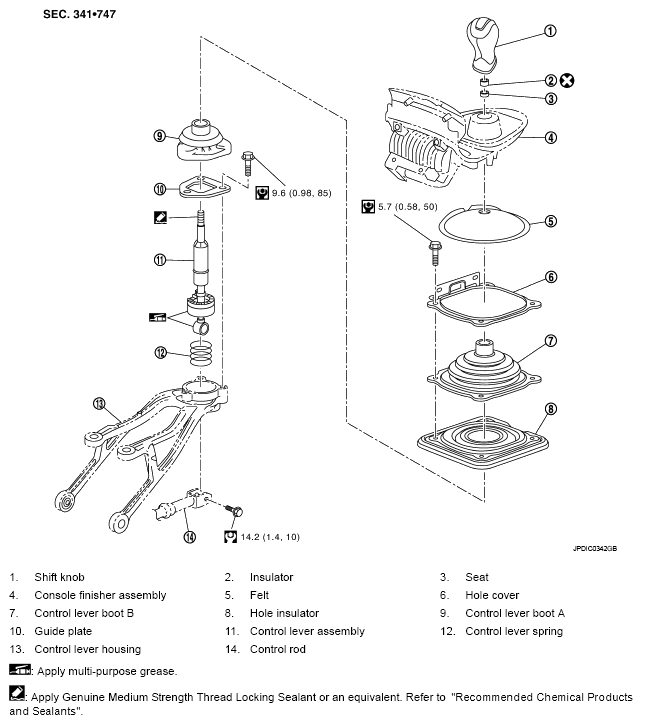

Fig 1: Exploded View Of Shift Control Components With Torque Specifications
G05733766Courtesy of NISSAN MOTOR CO., U.S.A.
