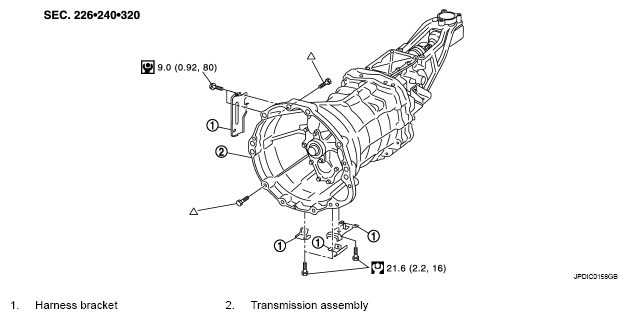

Exploded View
WARNING: This page is about a different variant/trim than selected.
CAUTION:
Never reuse CSC (Concentric Slave Cylinder) body and CSC tube. Because CSC slides back to the original position every time when removing transmission assembly. At this timing, dust on the sliding parts may damage a seal of CSC and may cause clutch fluid leakage. Refer to
"REMOVAL AND INSTALLATION
".
