Component Description
- Air bag sensor are prepared for operation while the ignition switch is in the ON or START position.
- The operation of supplemental restraint system is different from collision modes applicaitions. For example, the driver air bag module and front passenger air bag module are activated in a frontal collision but not in a side collision.

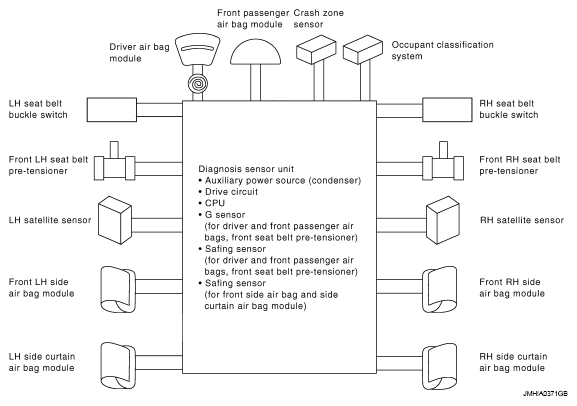

- SRS configurations which are activated for some collision modes are as follows.
SRS CONFIGURATIONS REFERENCE CHART
| SRS configuration | Frontal collision | Left side collision | Right side collision |
|---|---|---|---|
| Driver air bag module. Refer to B1209 FRONTAL COLLISION DETECTION | x | - | - |
| Front passenger air bag module. Refer to B1209 FRONTAL COLLISION DETECTION | x | - | - |
| Front LH seat belt pre-tensioner. Refer to B1209 FRONTAL COLLISION DETECTION | x | - | - |
| Front RH seat belt pre-tensioner. Refer to B1209 FRONTAL COLLISION DETECTION | x | - | - |
| Front LH side air bag module. Refer to B1210 SIDE COLLISION DETECTION | - | x | - |
| Front RH side air bag module. Refer to B1210 SIDE COLLISION DETECTION | - | - | x |
| LH side curtain air bag module. Refer to B1210 SIDE COLLISION DETECTION | - | x | - |
| RH side curtain air bag module. Refer to B1210 SIDE COLLISION DETECTION | - | - | x |
| x: Application, -: Not application | |||
