Removal And Installation

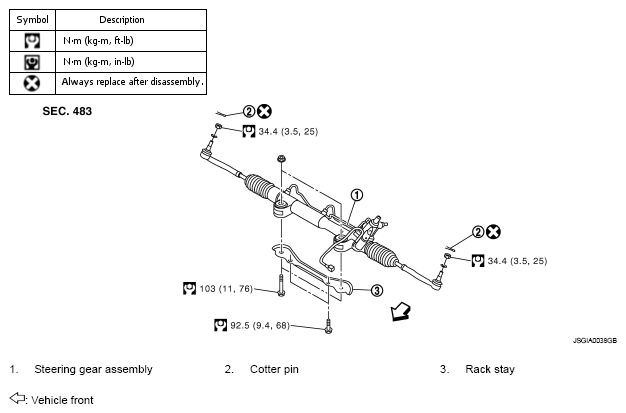

Fig 1: Removing/Installing Steering Gear Assembly With Torque Specifications
G05735168Courtesy of NISSAN MOTOR CO., U.S.A.
