Disassembly And Assembly

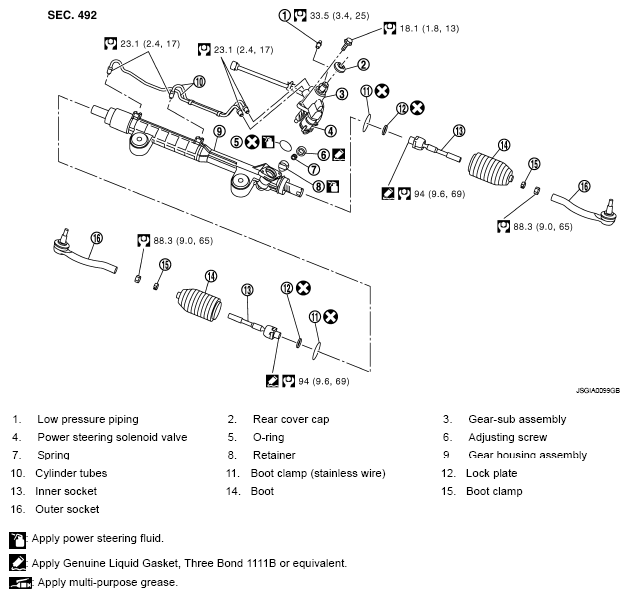

Fig 1: Disassembly/Assembly Of Steering Gear And Linkage With Torque Specifications
G05735169Courtesy of NISSAN MOTOR CO., U.S.A.
