Exploded View

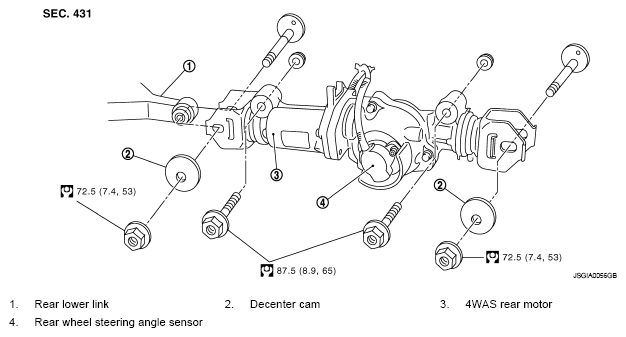

Fig 1: Identifying 4WAS Rear Actuator Assembly Components
G05735284Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
