Direct Clutch: Assembly

  1. Install drive plates, driven plates, dish plate and retaining plates in direct clutch drum.
    CAUTION: Check the order of plates.

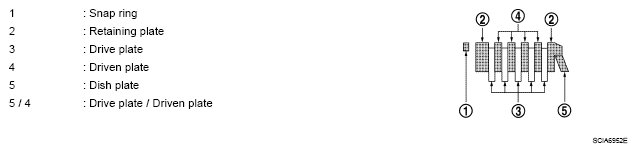

    Fig 1: Identifying Order Of Plates
    G05734376Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Using a flat-bladed screwdriver, install snap ring in direct clutch drum.
    Fig 2: Installing Snap Ring In Direct Clutch Drum
    G04876143Courtesy of NISSAN MOTOR CO., U.S.A.
