Removal and Installation: Removal

Disconnect lower lever of control device and control rod.
Shift the selector lever to "N" position.
Remove knob cover (A) below selector lever downward.
Pull lock pin (1) out of selector lever knob (2).
Remove selector lever knob.
Remove console finisher assembly, rear upper console assembly and console front bracket. Refer to "EXPLODED VIEW ".
Disconnect A/T device harness connector.
Remove control device assembly.

Fig 1: Identifying Lock Pin And Selector Lever Knob
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove the following parts if necessary.
1. Selector lever position indicator
  1. Remove the cigarette lighter harness connector (A) from the console finisher assembly.

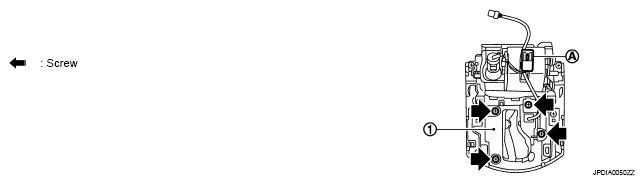

    Fig 2: Identifying Cigarette Lighter Harness Connector And Insert Finisher
    Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Remove the insert finisher (1) from the console finisher.
  3. Remove the selector lever position indicator.
2. Shift lock unit
  1. Remove the shift lock unit from the control device assembly.
