Removal and Installation: Installation

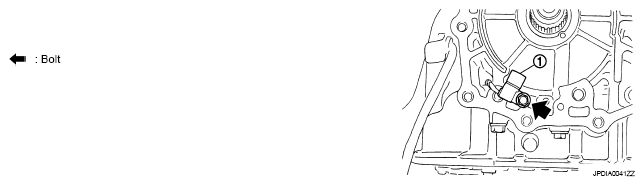

Install revolution sensor (1) in transmission case. Tighten a necessary bolt for revolution sensor with specified torque.
CAUTION:
- Do not subject it to impact by dropping or hitting it.
- Do not disassemble.
- Do not allow metal filings, etc. to get on the sensor's front edge magnetic area.
- Do not place in an area affected by magnetism.

  Fig 1: Identifying Revolution Sensor
  Courtesy of NISSAN MOTOR CO., U.S.A.
Connect revolution sensor connector (A).
Engage revolution sensor harness with clip (<=).

Fig 2: Identifying Revolution Sensor Connector
Courtesy of NISSAN MOTOR CO., U.S.A.

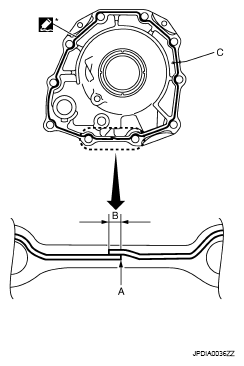

Apply recommended sealant (Genuine Anaerobic Liquid Gasket or equivalent. Refer to "RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS ".) to rear extension assembly as shown in the figure.
A : Start and finish point shall be in the center of two bolts.

B : 3 - 5 mm (0.12 - 0.20 in)

Sealant width (C) : 1.0 - 2.0 mm (0.04 - 0.08 in)

Sealant height (C) : 0.4 - 1.0 mm (0.016 - 0.04 in)

CAUTION: Completely remove all moisture, oil and old sealant, etc. from transmission case and rear extension assembly mounting surfaces.

Fig 3: Identifying Sealant Width
Courtesy of NISSAN MOTOR CO., U.S.A.
Install rear extension assembly (with needle bearing) to transmission case.
CAUTION: Insert the tip of parking rod between the parking pole and the parking actuator support when assembling the rear extension assembly.

Fig 4: Installing Rear Extension Assembly (With Needle Bearing) To Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.

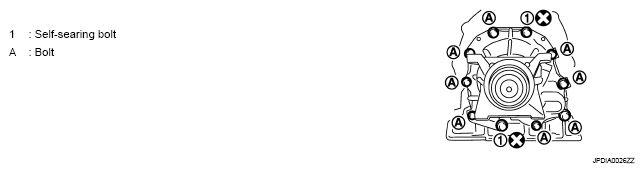

Tighten rear extension assembly bolts to the specified torque.

Fig 5: Identifying Rear Extension Assembly Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.
Install rear engine mounting member. Refer to "EXPLODED VIEW ".
Install oil pan gasket to oil pan.
CAUTION:
- Do not reuse oil pan gasket.
- Install it in the direction to align hole positions.
- Completely remove all moisture, oil and old gasket, etc. from oil pan gasket mounting surface.

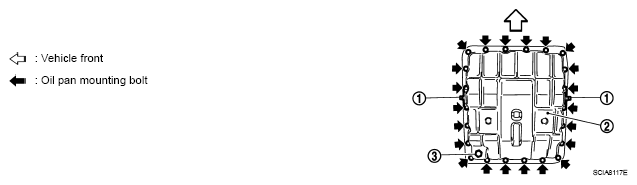

Install oil pan (2) (with oil pan gasket) and clips (1) to transmission case.

Fig 6: Locating Oil Pan Mounting Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION:
- Install it so that drain plug (3) comes to the position as shown in the figure.
- Be careful not to pinch harnesses.
- Completely remove all moisture, oil and old gasket, etc. from oil pan mounting surface.

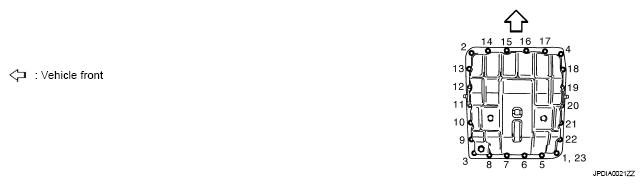

Tighten oil pan mounting bolts to the specified torque in numerical order shown in the figure after temporarily tightening them. Tighten necessary oil pan mounting bolts with specified torque.

Fig 7: Identifying Tightening Sequence Of Oil Pan Mounting Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: Do not reuse oil pan mounting bolts.
Install drain plug to oil pan. Tighten a necessary drain plug with specified torque.
CAUTION: Do not reuse drain plug gasket.

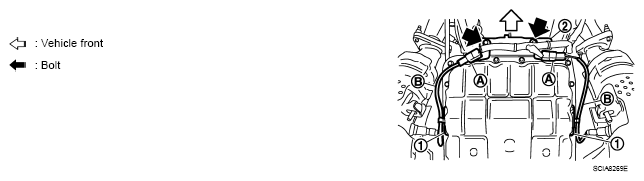

Install bracket (2) to transmission assembly.

Fig 8: Identifying Heated Oxygen Sensor 2 Harness And Heated Oxygen Sensor 2 Harness Connectors
Courtesy of NISSAN MOTOR CO., U.S.A.
Install heated oxygen sensor 2 harness (B) to clips (1).
Connect heated oxygen sensor 2 harness connectors (A).
Install exhaust mounting bracket. Refer to "EXPLODED VIEW ".
Install control rod. Refer to "EXPLODED VIEW ".
Install rear propeller shaft. Refer to "EXPLODED VIEW ".
Install heat insulator.
Install exhaust front tube and center muffler. Refer to "EXPLODED VIEW ".
Pour ATF into A/T assembly. Refer to "CHANGING ".
Connect the battery cable to the negative terminal.
