Operation Table Of BCM And Combination Switches

BCM reads operation status of combination switch using combinations shown in table below.

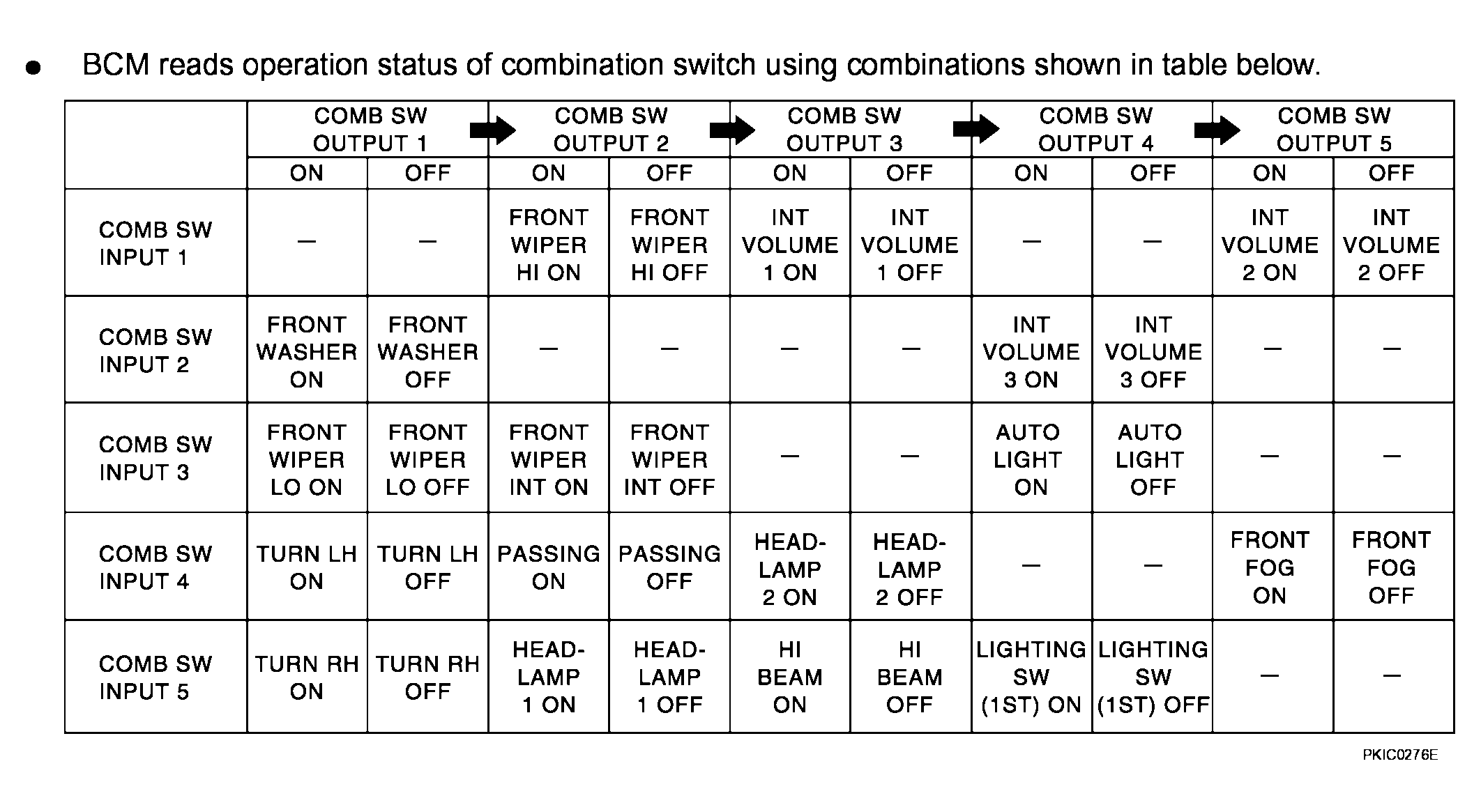

Fig 1: BCM - Operation Table Of Combination Switches
G04140698Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE: Headlamp system has a dual switch.
