Exploded View

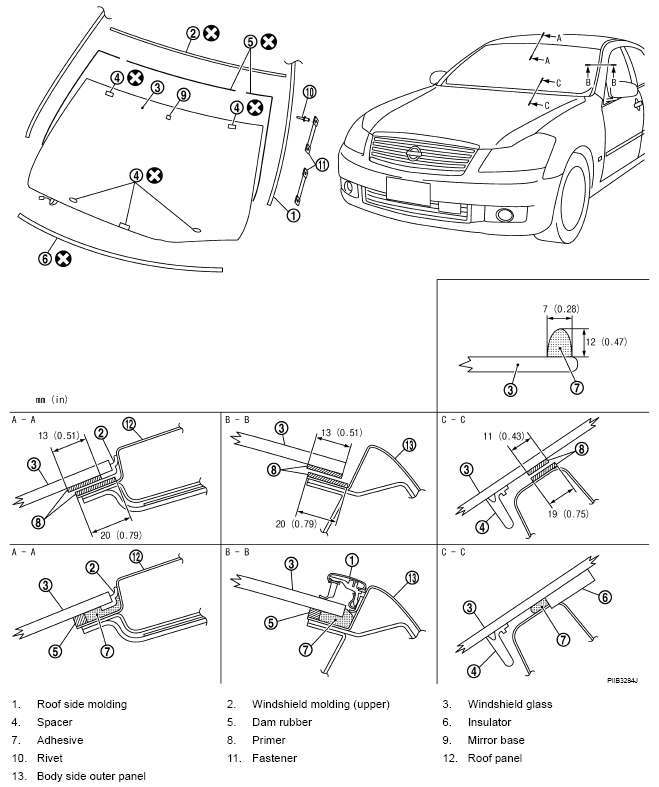

Fig 1: Identifying Windshield Glass Specification
G05212555Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to CONTENTS for symbols in the figure.
