Removal And Installation: Components
Refer to
COMPONENTS
.
Refer to
RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS
.

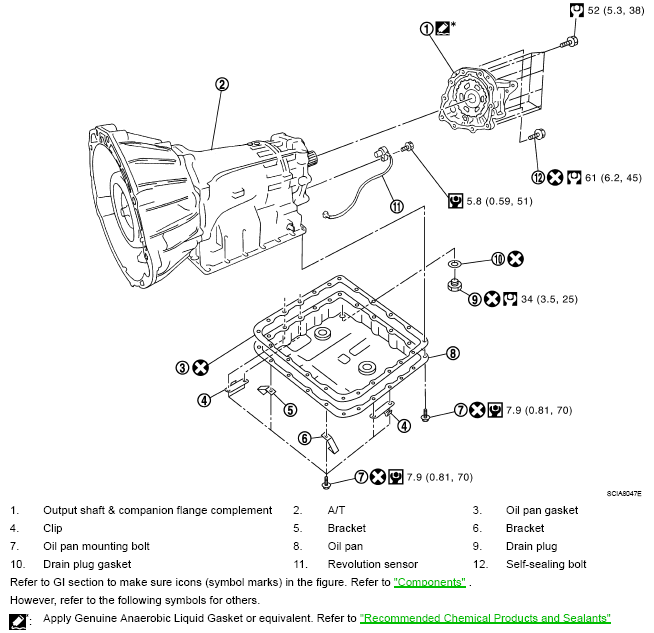

Fig 1: Revolution Sensor Replacement Components (VQ35DE models) With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.

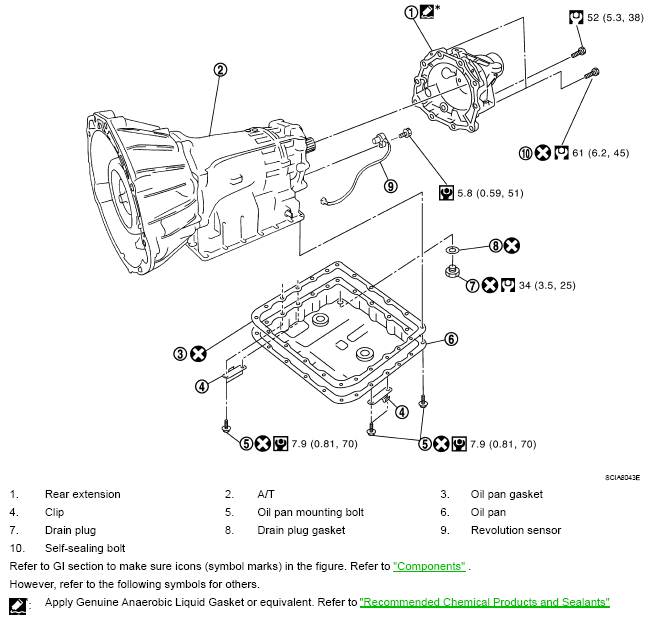

Fig 2: Revolution Sensor Replacement Components (VKD45DE Models) With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
