Removal and Installation (2WD Models): Components

Refer to COMPONENTS .

Refer to INSTALLATION .

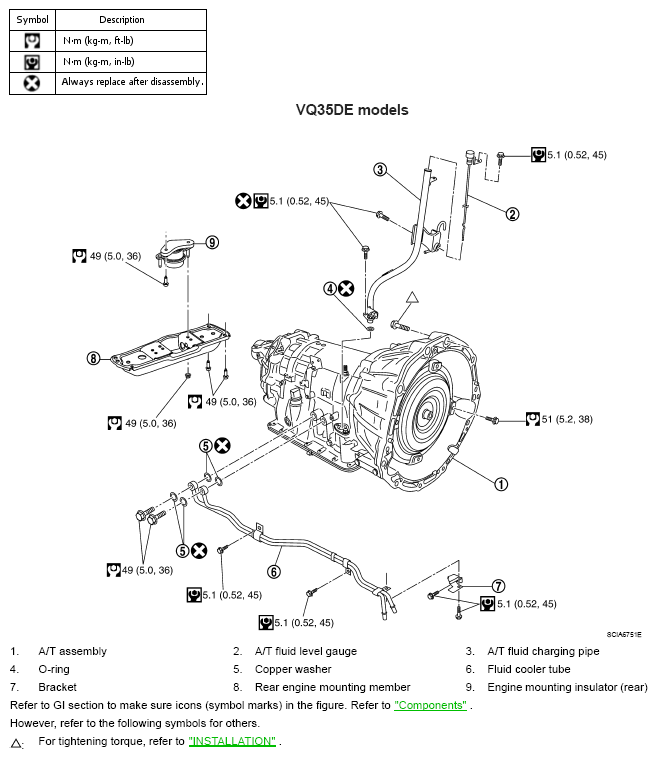

Fig 1: Transmission Assembly Replacement Components (VQ35DE Models) With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

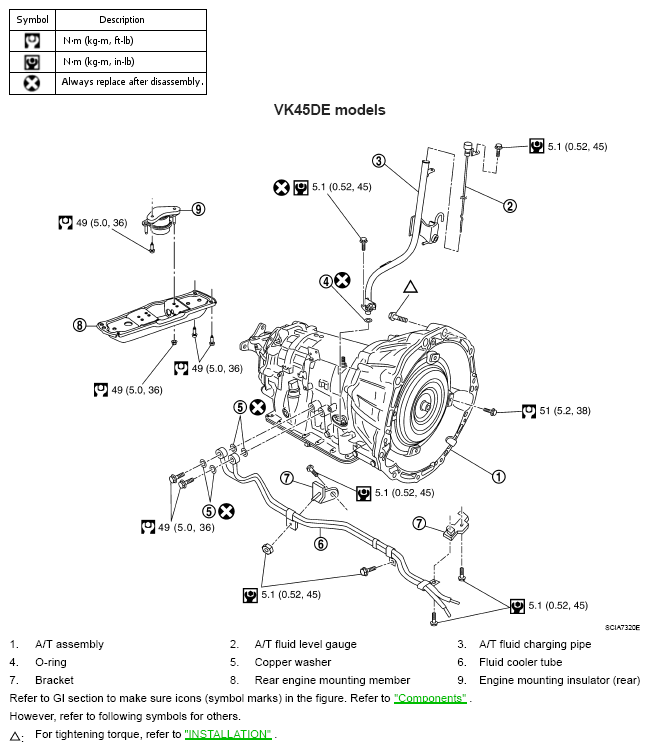

Fig 2: Transmission Assembly Replacement Components (VK45DE Models) With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.
