Check Telescopic Sensor Circuit
- CHECK FUNCTION
With CONSULT-III
Operate the telescopic switch with "TELESCO SEN" on the DATA MONITOR to make sure the voltage changes.
DATA MONITOR CONTENTS CHARTMonitor item [OPERATION or UNIT] Contents TELESCO SEN "V" The telescoping position (voltage) judged from the telescoping sensor signal is displayed. Without CONSULT-III
- Turn ignition switch OFF.
- Check voltage between automatic drive positioner control unit connector and ground.VOLTAGE SPECIFICATION
Automatic drive positioner connector Terminals Condition Voltage (V) (Approx.) (+) (-) M6 23 Ground Telescopic top position 4.6 Telescopic bottom position 0.4
OK or NG
OK: Telescopic sensor circuit is OK.
NG: GO TO 2.
- CHECK HARNESS CONTINUITY
- Disconnect automatic drive positioner control unit connector and telescopic sensor connector.

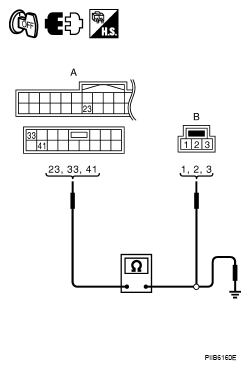

- Check continuity harness between automatic drive positioner control unit connector and telescopic sensor connector.CONTINUITY SPECIFICATION
A B Continuity Automatic drive positioner control unit connector Terminal Telescopic sensor connector Terminal M6 23 M44 2 Yes M7 33 1 41 3 - Check continuity harness between automatic drive positioner control unit connector and ground.CONTINUITY SPECIFICATION
A Ground Continuity Automatic drive positioner control unit connector Terminal M6 23 No M7 33 41
OK or NG
OK: GO TO 3.
NG: Repair or replace harness.
- CHECK AUTOMATIC DRIVE POSITIONER CONTROL UNIT OUTPUT
- Connect automatic drive positioner control unit connector.
- Check voltage between automatic drive position control unit connector and ground.VOLTAGE SPECIFICATION
Terminals Voltage (V) (Approx.) (+) (-) Automatic drive positioner control unit connector Terminal M6 23 Ground 5
OK or NG
OK: Replace telescopic sensor.
NG: Replace automatic drive positioner control unit.
