Diagnosis Procedure

  1. CHECK SNOW MODE SWITICH OVERALL FUNCTION-I
    1. Turn ignition switch ON.
    2. Select "SNOW MODE SW" in "DATA MONITOR" mode with CONSULT-III.
    3. Check "SNOW MODE SW" indication under the following conditions.
    CONDITION INDICATION
    Snow mode switch: ON ON
    Snow mode switch: OFF OFF

    2. OK or NG

    OK >> GO TO 2.

    NG >> GO TO 3.

  2. CHECK SNOW MODE SWITCH OVERALL FUNCTION-II
    1. Turn ignition switch ON.
    2. Start engine.
    3. Check the snow mode indicator in the snow mode switch under the following condition.
    CONDITION INDICATION
    Snow mode switch: ON ON
    Snow mode switch: OFF OFF

    OK or NG

    OK >> INSPECTION END

    NG >> GO TO  7.

  3. CHECK DTC WITH "UNIFIED METER AND A/C AMP."

    Refer to CONSULT-III FUNCTION (METER M&A) .

    OK or NG

    OK >> GO TO  4.

    NG >> Follow the instruction of CONSULT-III FUNCTION (METER M&A) .

  4. CHECK SNOW MODE SWITCH POWER SUPPLY CIRCUIT
    1. Turn ignition switch OFF.
    2. Disconnect snow mode switch harness connector.
    3. Turn ignition switch ON.
    4. Check voltage between snow mode switch terminal 1 and ground with CONSULT-III or tester.

      Voltage: Battery voltage.

      5. Fig 1: Checking Voltage Between Snow Mode Switch Terminal 1 And Ground With CONSULT-II Or Tester
      G04075328Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    OK >> GO TO 6.

    NG >> GO TO 5.

  5. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors E108, M15
    • IPDM E/R harness connector E7
    • 10A fuse
    • Harness for open or short between snow mode switch and fuse.

    >> Repair open circuit or short to ground or short to power in harness or connectors.

  6. CHECK SNOW MODE SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
    1. Turn ignition switch OFF.
    2. Disconnect "unified meter and A/C amp." harness connector.
    3. Check harness continuity between snow mode switch terminal 4 and "unified meter and A/C amp." terminal 23. Refer to Wiring Diagram .
    4. Also check harness for short to ground and short to power.

    OK or NG

    OK >> GO TO 9.

    NG >> Repair open circuit or short to ground or short to power in harness or connectors.

  7. CHECK GROUND CONNECTIONS
    1. Turn ignition switch OFF.
    2. Loosen and retighten two ground screws on the body.

      Refer to GROUND INSPECTION

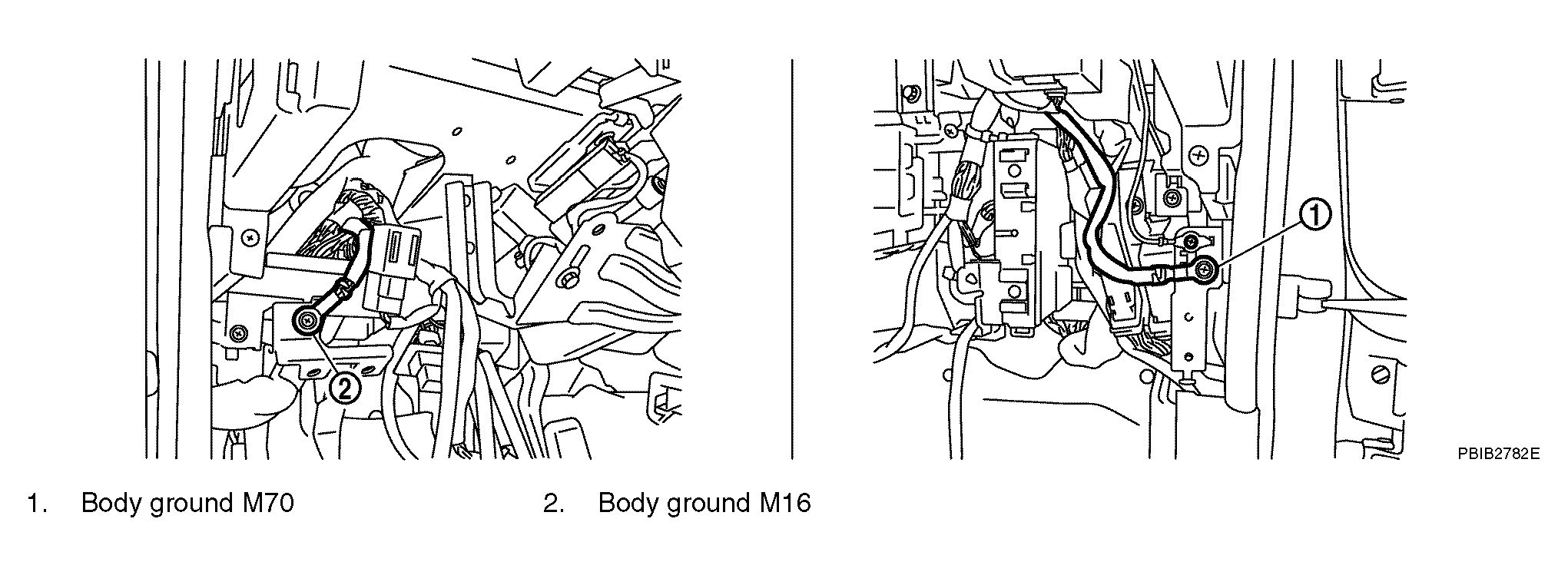

    Fig 2: Checking Ground Connections
    G04143282Courtesy of NISSAN MOTOR CO., U.S.A.
  8. CHECK SNOW MODE INDICATOR LAMP GROUND CIRCUIT FOR OPEN AND SHORT
    1. Check harness continuity between snow mode switch terminal 2 and ground.

      Refer to Wiring Diagram.

      Continuity should exist.

    2. Also check harness for short to power.

      3. OK or NG

      OK >> GO TO 9.

      NG >> Repair open circuit or short to power in harness or connectors.

  9. CHECK SNOW MODE SWITCH

    Refer to Component Inspection .

    OK or NG

    OK >> GO TO 10.

    NG >> Replace snow mode switch.

  10. CHECK INTERMITTENT INCIDENT

    Refer to Diagnosis Procedure

    >> INSPECTION END
