Snow Mode Switch: Wiring Diagram

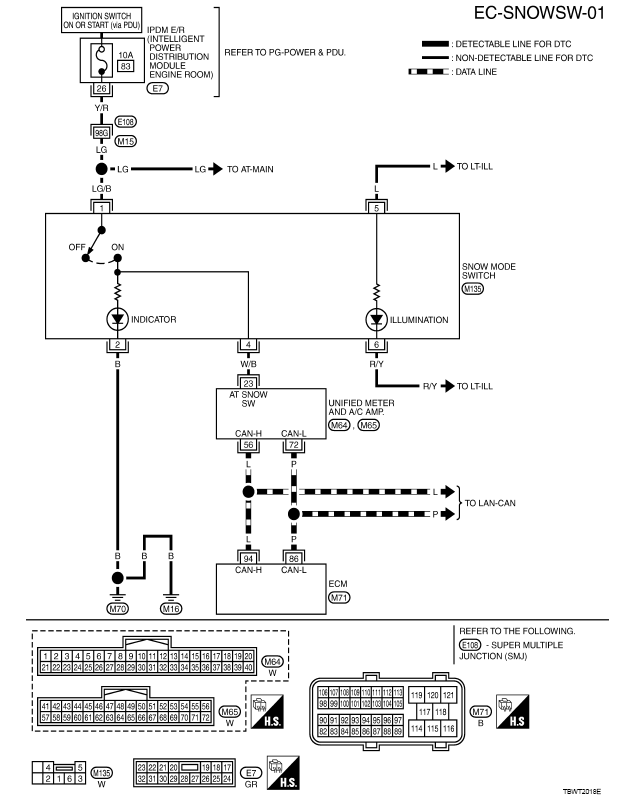

Fig 1: EC-SNOWSW-01 Wiring Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
