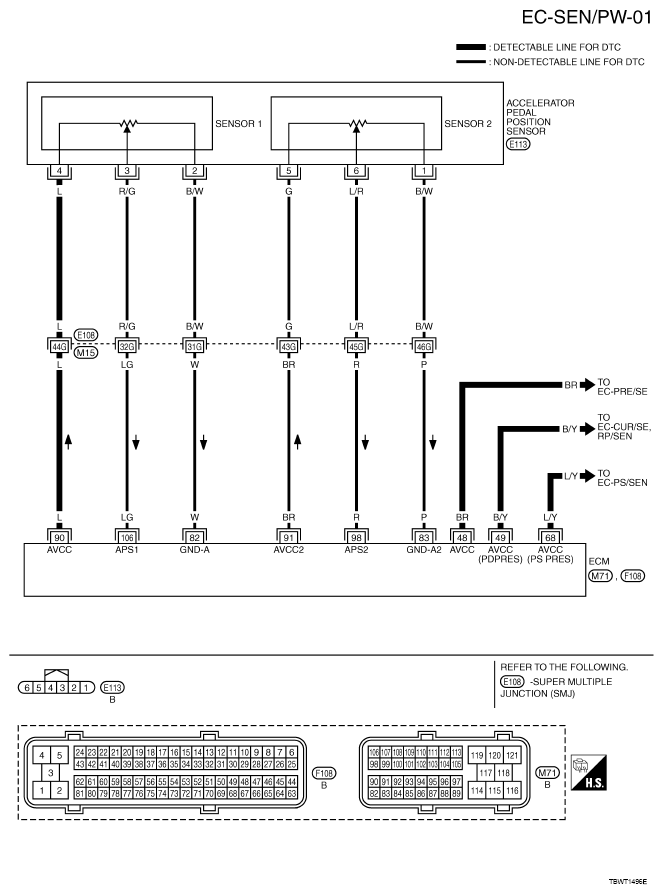

DTC P0643 Sensor Power Supply: Wiring Diagram
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
TERMINAL SPECIFICATION DATA REFERENCE
| TERMINAL NO. | WIRE COLOR | ITEM | CONDITION | DATA (DC Voltage) |
|---|---|---|---|---|
| 48 | BR | Sensor power supply (EVAP control system pressure sensor) | [Ignition switch: ON] | Approximately 5V |
| 49 | B/Y | Sensor power supply (Refrigerant pressure sensor, Battery current sensor) | [Ignition switch: ON] | Approximately 5V |
| 68 | L/Y | Sensor power supply (Power steering pressure sensor) | [Ignition switch: ON] | Approximately 5V |
| 82 | W | Sensor ground (APP sensor 1) | [Engine is running]
|
Approximately 0V |
| 83 | P | Sensor ground (APP sensor 2) | [Engine is running]
|
Approximately 0V |
| 90 | L | Sensor power supply (APP sensor 1) | [Ignition switch: ON] | Approximately 5V |
| 91 | BR | Sensor power supply (APP sensor 2) | [Ignition switch: ON] | Approximately 5V |
| 98 | R | Accelerator pedal position sensor 2 | [Ignition switch: ON]
|
0.20 - 0.55V |
[Ignition switch: ON]
|
1.85 - 2.40V | |||
| 106 | LG | Accelerator pedal position sensor 1 | [Ignition switch: ON]
|
0.4 - 1.1V |
[Ignition switch: ON]
|
3.7 - 4.8V |
