Yaw Rate And Deceleration Sensor: Components

WARNING: This page is about a different car, the 2008 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Yaw Rate & Deceleration Sensor Replacement Components With Torque Specifications - For Center Seat Type
G05159867Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

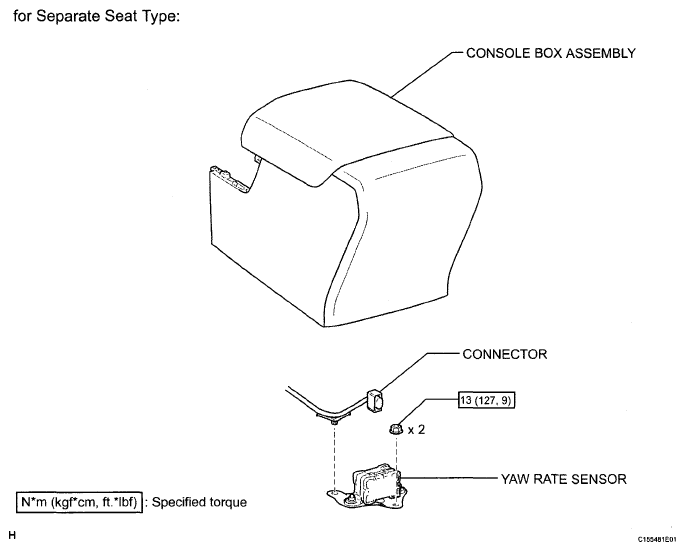

Fig 2: Identifying Yaw Rate & Deceleration Sensor Replacement Components With Torque Specifications - For Separate Seat Type
G05159868Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
