Vehicle Speed Signal Circuit between Navigation Receiver Assembly and Combination Meter: Wiring Diagram

WARNING: This page is about a different car, the 2008 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

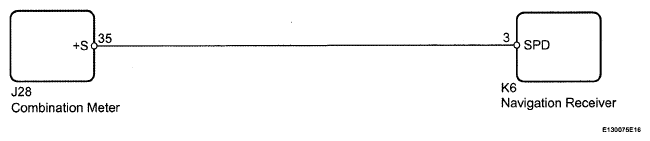

Fig 1: Vehicle Speed Signal Circuit between Navigation Receiver Assembly and Combination Meter - Wiring Diagram
G05156927Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
