Front Suspension Assembly: Components

Refer to COMPONENTS .

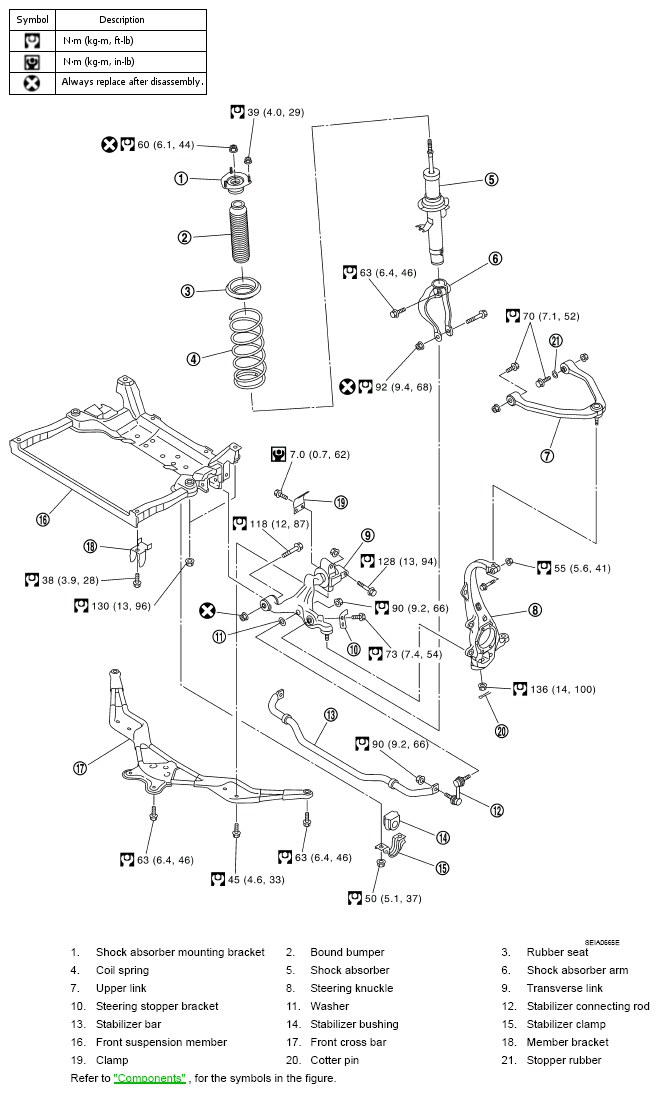

Fig 1: Exploded View Of Front Suspension Assembly Components With Torque Specifications
G05211667Courtesy of NISSAN MOTOR CO., U.S.A.
