Clutch And Band Chart

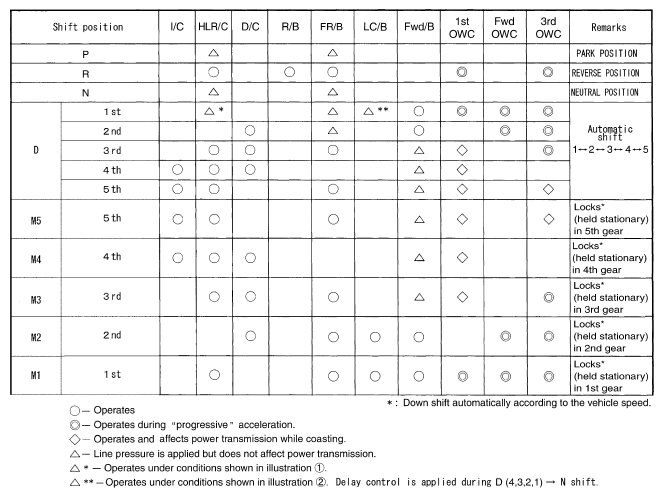

Fig 1: Clutch And Band Chart
G05213170Courtesy of NISSAN MOTOR CO., U.S.A.

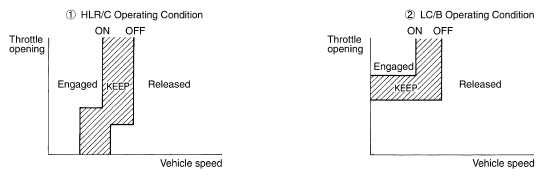

Fig 2: Identifying Vehicle Speed Throttle Opening Operation Condition
G05217909Courtesy of NISSAN MOTOR CO., U.S.A.
