Oil Channel

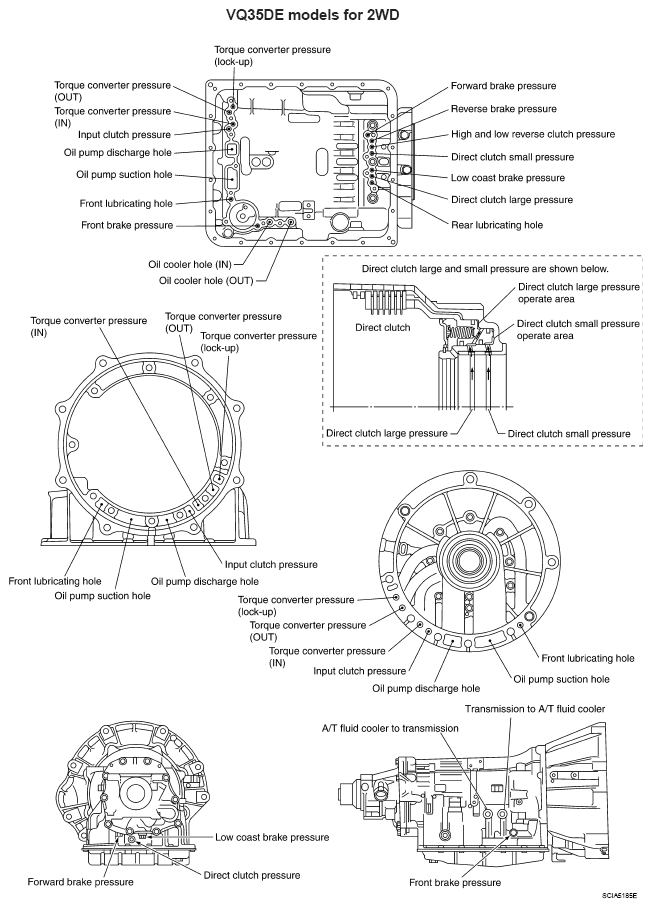

Fig 1: Exploded View Of Oil Channel Components (VQ35DE Models For 2WD)

Courtesy of NISSAN MOTOR CO., U.S.A.

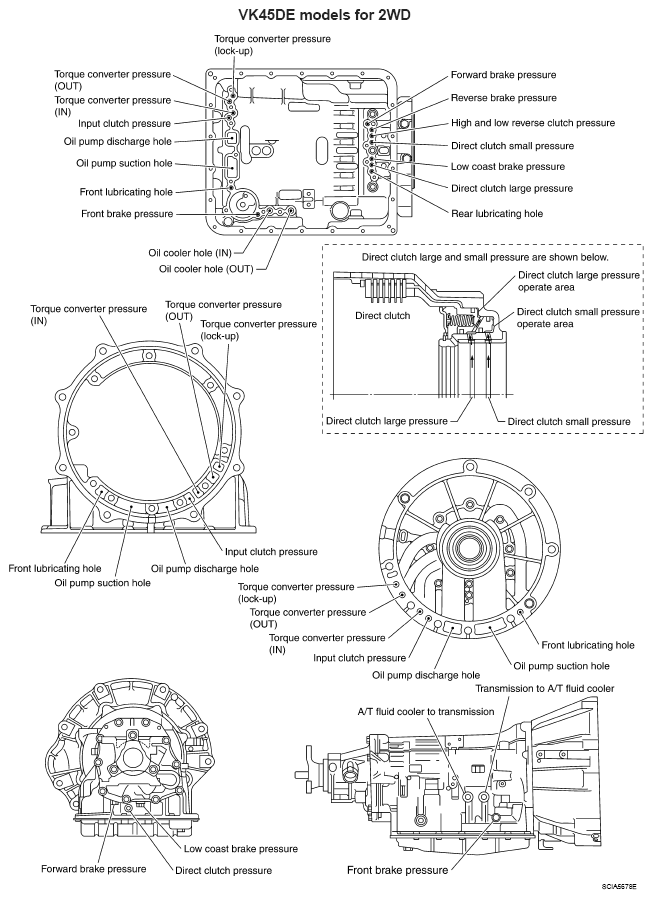

Fig 2: Exploded View Of Oil Channel Components (VK45DE Models For 2WD)

Courtesy of NISSAN MOTOR CO., U.S.A.

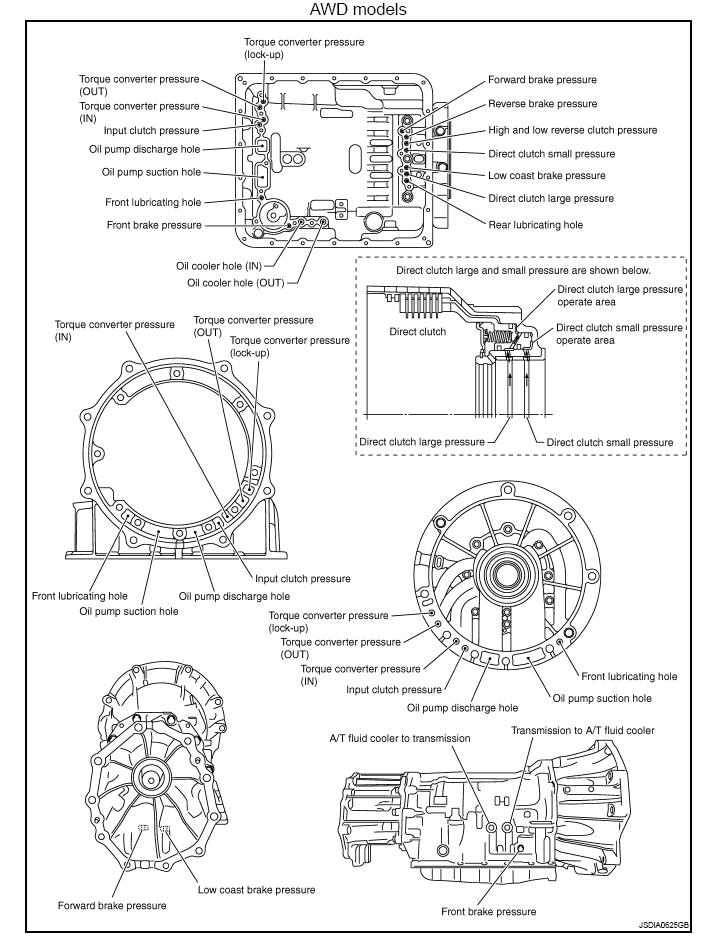

Fig 3: Exploded View Of Oil Channel Components (AWD Models)

Courtesy of NISSAN MOTOR CO., U.S.A.
