Removal and Installation (AWD Models): Components
Refer to
COMPONENTS
.
Refer to
INSTALLATION
.
Fig 1: Transmission Assembly Replacement Components With Torque Specifications (AWD Models)
Courtesy of NISSAN MOTOR CO., U.S.A.

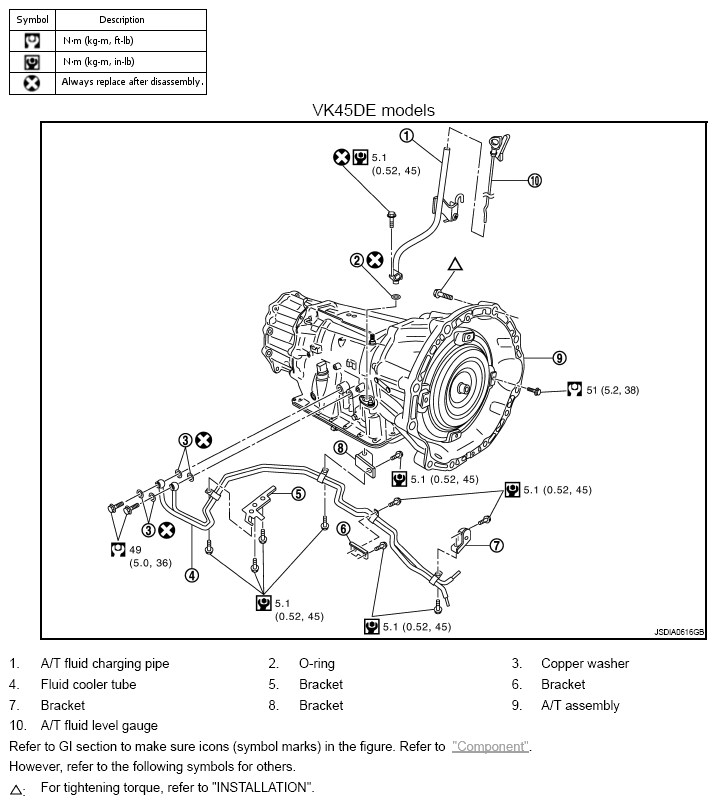

Fig 2: Transmission Assembly Replacement Components With Torque Specifications (VK45DE Models)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
