Disassembly and Assembly: Components

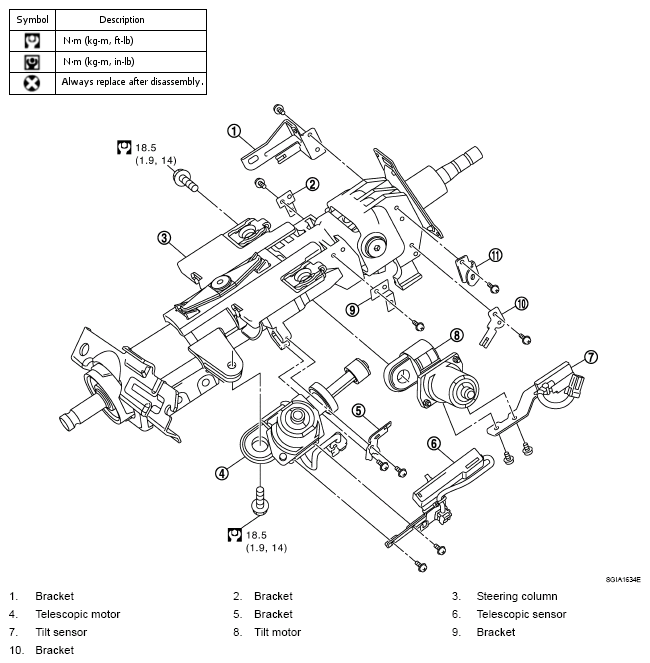

Fig 1: Steering Column Disassembled View With Torque Specifications
G05211897Courtesy of NISSAN MOTOR CO., U.S.A.
