Diagnosis Procedure

CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten three ground screws on the body.
  Refer to "GROUND INSPECTION ".

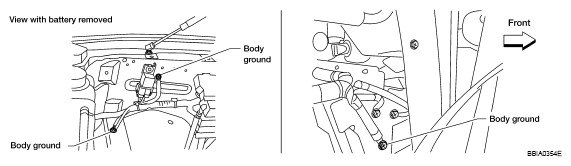

  Fig 1: Identifying Body Ground Screw
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG

OK: GO TO 2.

NG: Repair or replace ground connections.
CHECK CONNECTOR

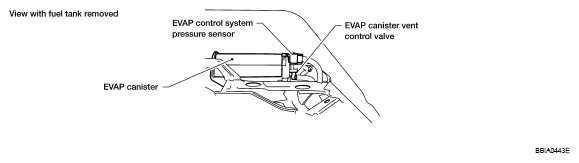

1. Disconnect EVAP control system pressure sensor harness connector.

  Fig 2: Applying Battery Voltage Between Terminals Of EVAP Canister Vent Control Valve
  Courtesy of NISSAN MOTOR CO., U.S.A.
2. Check sensor harness connector for water.
  Water should not exist.
OK or NG

OK: GO TO 3.

NG: Repair or replace harness connector.
CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR POWER SUPPLY CIRCUIT
1. Turn ignition switch ON.
2. Check voltage between EVAP control system pressure sensor terminal 3 and ground with CONSULT-III or tester.
  Voltage: Approximately 5V
OK or NG

OK: GO TO 5.

NG: GO TO 4.

Fig 3: Checking Voltage Between Ignition Coil Terminal 3 And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.
DETECT MALFUNCTIONING PART
Check the following.
- Harness connectors C1, E41
- Harness connectors E5, F14
- Harness for open or short between EVAP control system pressure sensor and ECM
Repair open circuit or short to ground or short to power in harness or connectors.
CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between EVAP control system pressure sensor terminal 1 and ECM terminal 67.
  Refer to WIRING DIAGRAM .

  Continuity should exist.
4. Also check harness for short to ground and short to power.
OK or NG

OK: GO TO 7.

NG: GO TO 6.
DETECT MALFUNCTIONING PART
Check the following.
- Harness connectors C1, E41
- Harness connectors E5, F14
- Harness for open or short between EVAP control system pressure sensor and ECM
Repair open circuit or short to ground or short to power in harness or connectors.
CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal 32 and EVAP control system pressure sensor terminal 2.
  Refer to WIRING DIAGRAM .

  Continuity should exist.
2. Also check harness for short to ground and short to power.
OK or NG

OK: GO TO 9.

NG: GO TO 8.
DETECT MALFUNCTIONING PART
Check the following.
- Harness connectors C1, E41
- Harness connectors E5, F14
- Harness for open or short between EVAP control system pressure sensor and ECM
Repair open circuit or short to ground or short to power in harness or connectors.
CHECK RUBBER TUBE
1. Disconnect rubber tube connected to EVAP canister vent control valve.
2. Check the rubber tube for clogging, vent or kinked.
OK or NG

OK: GO TO 10.

NG: Clean the rubber tube using an air blower, repair or replace rubber tube.
CHECK EVAP CANISTER VENT CONTROL VALVE
Refer to "COMPONENT INSPECTION ".

OK or NG

OK: GO TO 11.

NG: Replace EVAP canister vent control valve.
CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR
Refer to "COMPONENT INSPECTION ".

OK or NG

OK: GO TO 12.

NG: Replace EVAP control system pressure sensor.
CHECK IF EVAP CANISTER SATURATED WITH WATER
1. Remove EVAP canister with EVAP canister vent control valve and EVAP control system pressure sensor attached.
2. Check if water will drain from the EVAP canister.
Yes or No

Yes: GO TO 13.

No: GO TO 15.

Fig 4: Checking EVAP Canister Saturated With Water
Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK EVAP CANISTER
Weigh the EVAP canister with the EVAP canister vent control valve and EVAP control system pressure sensor attached.

The weight should be less than 2.5 kg (5.5 lb).

OK or NG

OK: GO TO 15.

NG: GO TO 14.
DETECT MALFUNCTIONING PART
Check the following.
- EVAP canister for damage
- EVAP hose between EVAP canister and vehicle frame for clogging or poor connection
Repair hose or replace EVAP canister.
CHECK INTERMITTENT INCIDENT
Refer to "HOW TO CHECK TERMINAL " and "INTERMITTENT INCIDENT ".

INSPECTION END
