Disassembly And Assembly: Overhaul: Component

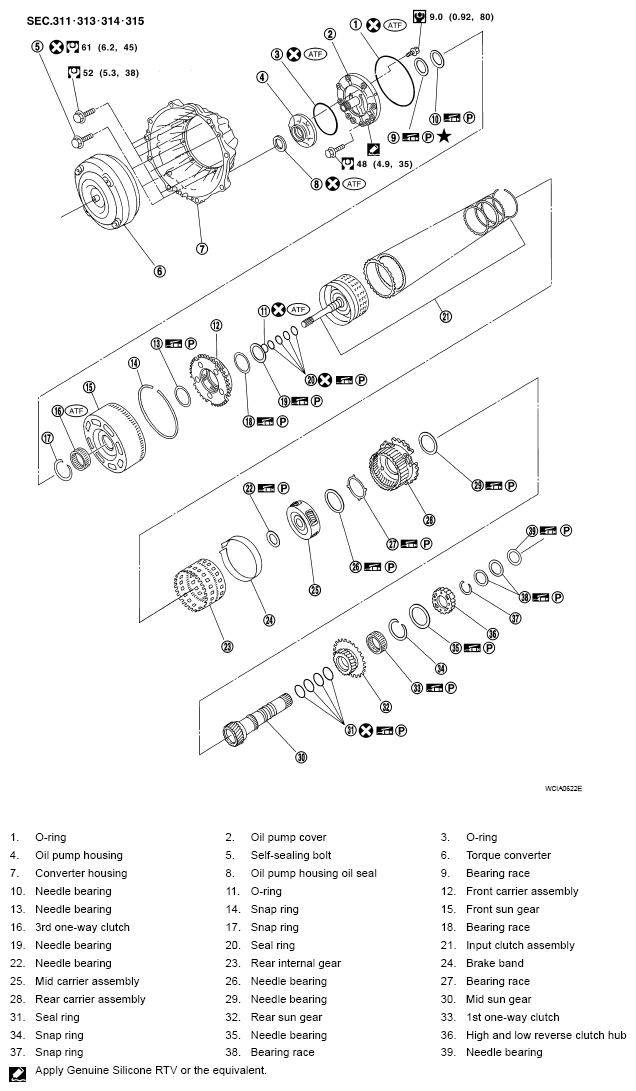

Fig 1: Exploded View Of Automatic Transmission (1 Of 2)
G05740164

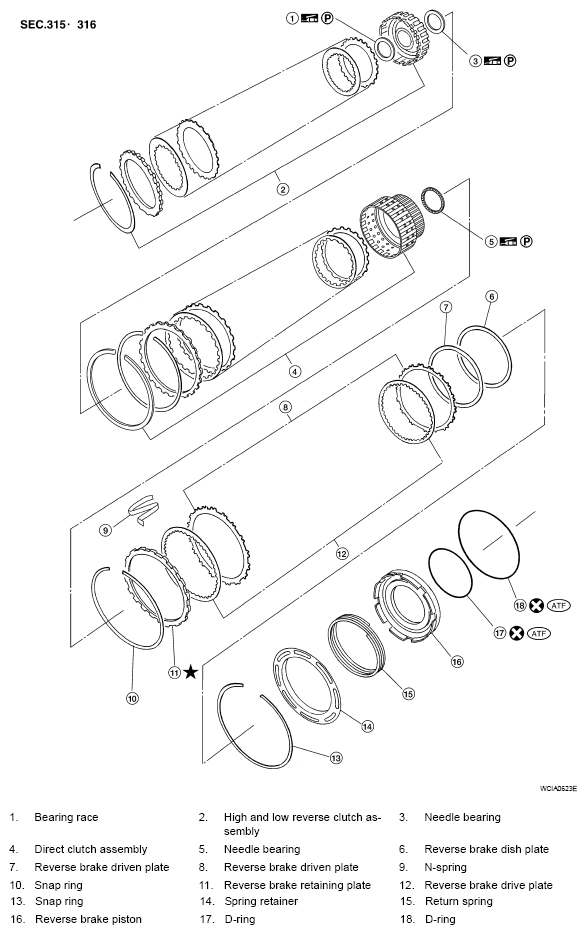

Fig 2: Exploded View Of Automatic Transmission (2 Of 2)
G05740165

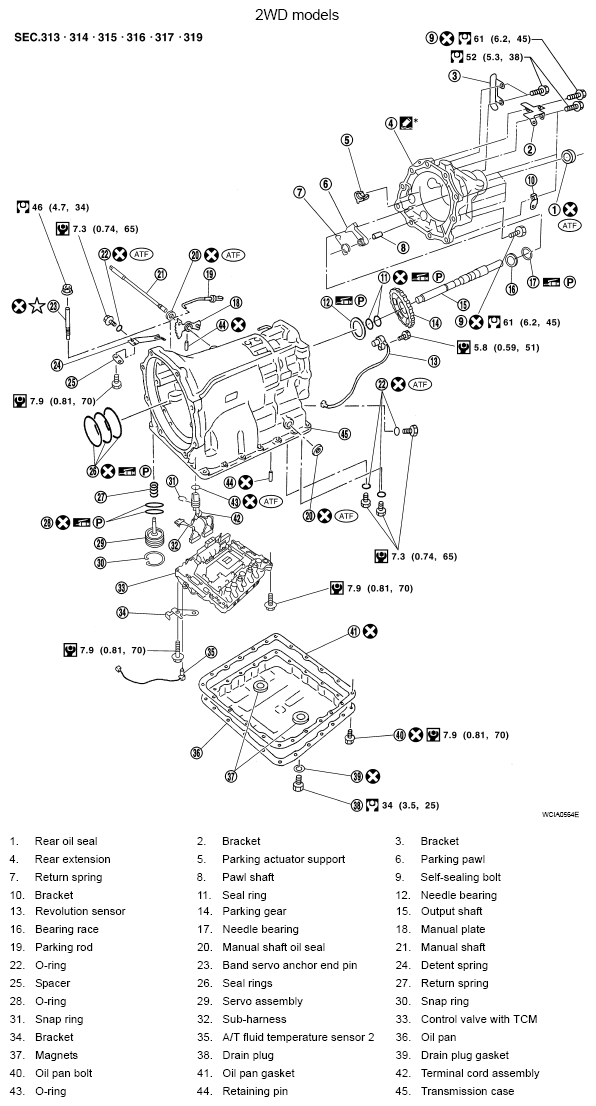

Fig 3: Exploded View Of Automatic Transmission - 2WD Models
G05740166

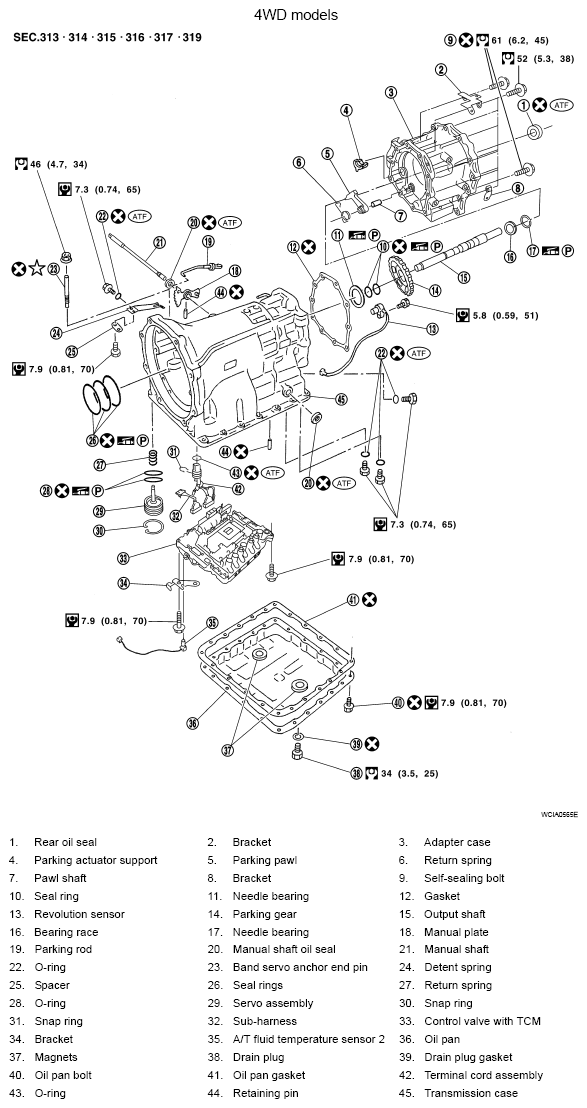

Fig 4: Exploded View Of Automatic Transmission - 4WD Models
G05740167
