Exploded View: Option

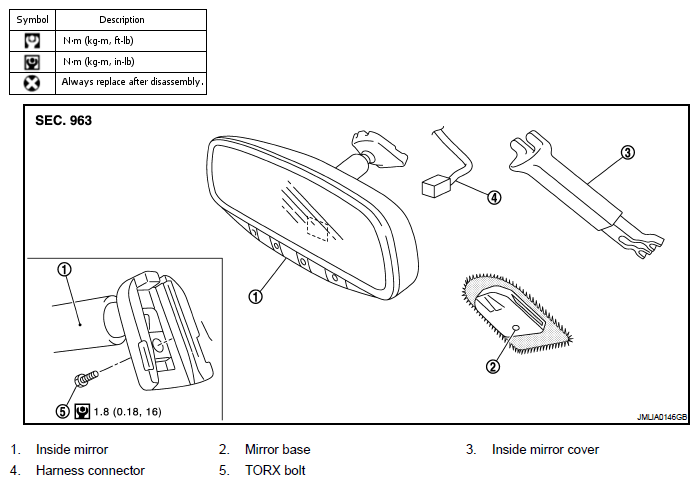

Fig 1: Inside Mirror With Torque Specifications - Option
G06295466Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
