ENTRY ASSIST FUNCTION : Component Parts Location

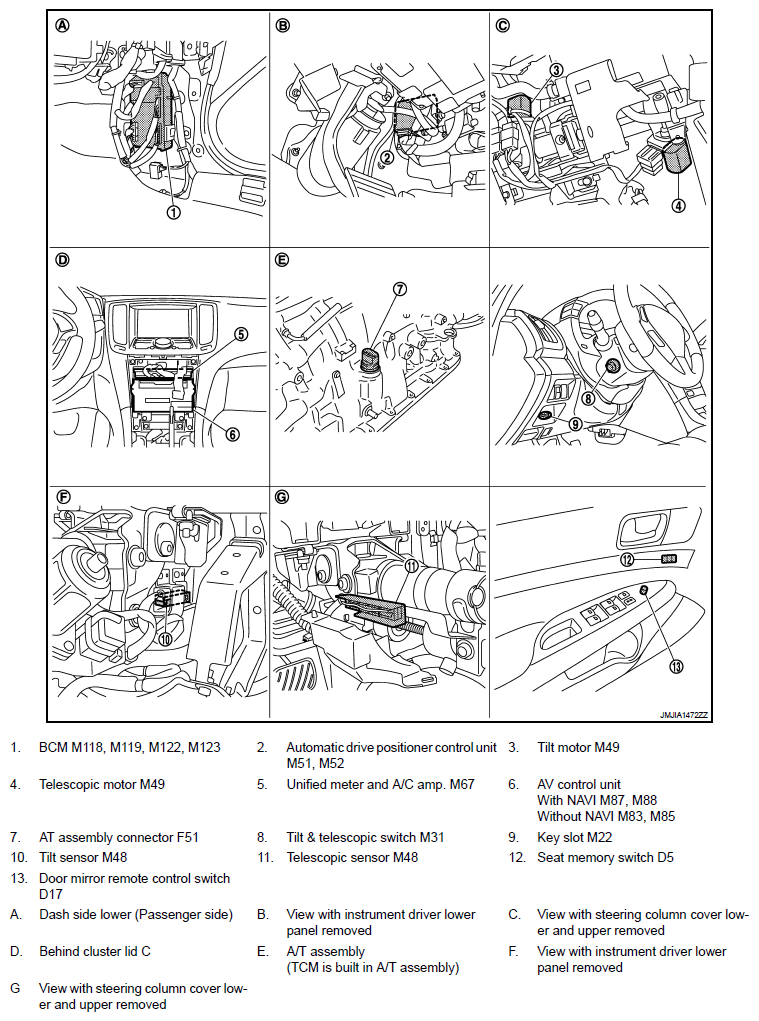

Fig 1: Identifying Entry Assist Component Parts Location (1 Of 2)
G06294952Courtesy of NISSAN MOTOR CO., U.S.A.

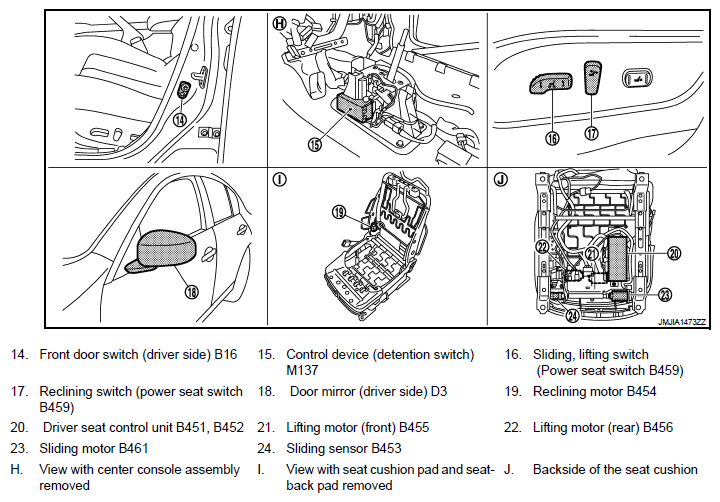

Fig 2: Identifying Entry Assist Component Parts Location (2 Of 2)
G06294953Courtesy of NISSAN MOTOR CO., U.S.A.
