Exploded View

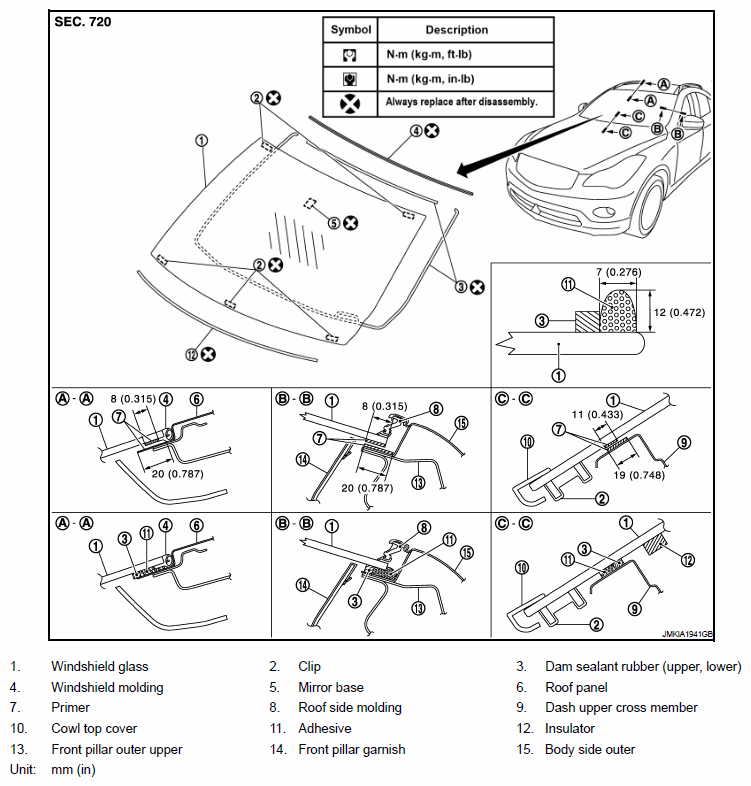

Fig 1: Identifying Windshield Glass Components
G06302332Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "Components " for symbols in the figure.
