Removal and Installation: Removal

  1. Remove the power window main switch finisher (2). Refer to "EXPLODED VIEW " and "REMOVAL AND INSTALLATION ".
  2. Power window main switch (1) is removed from power window main switch finisher (2) using flat-head screw driver (A) etc.
    CAUTION: Do not fold the pawl of power window main switch finisher.
    NOTE: The same procedure is also performed for front power window switch (passenger side) and rear power window switch (LH & RH).

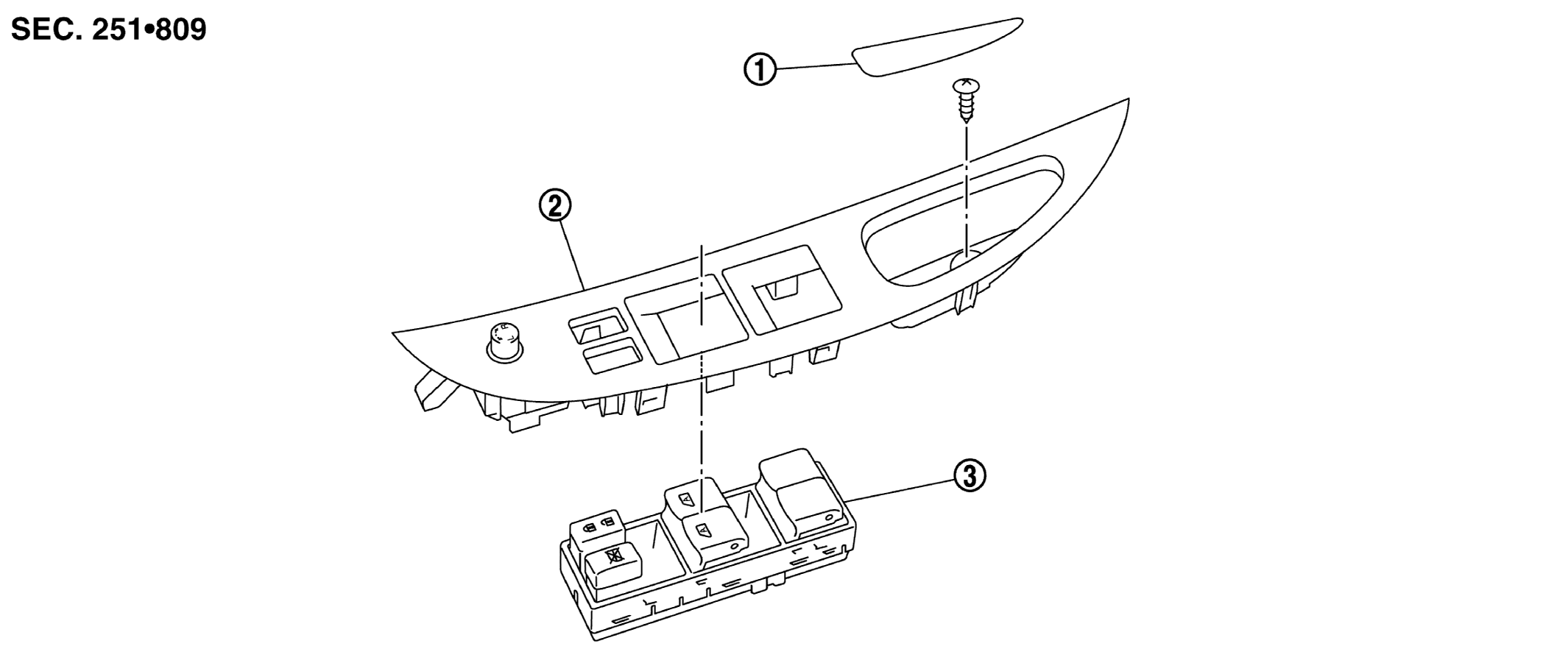

    Fig 1: View Of Removing Power Window Main Switch Finisher
    G06295201Courtesy of NISSAN MOTOR CO., U.S.A.
