FRONT WHEEL SENSOR : Exploded View

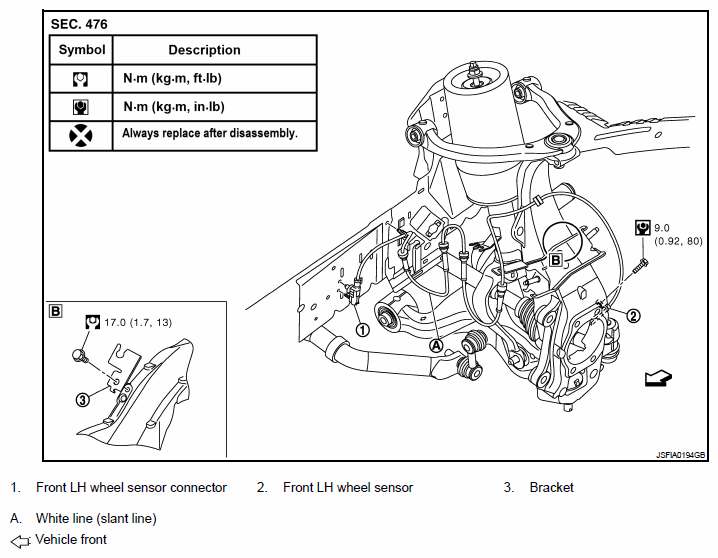

Fig 1: Identifying Front Wheel Sensor Components
G06297218Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to COMPONENTS in GENERAL INFORMATION for symbol marks in the figure.

NOTE: The above figure shows left side. Right side is the mirror image.
