AWD : Exploded View: Removal

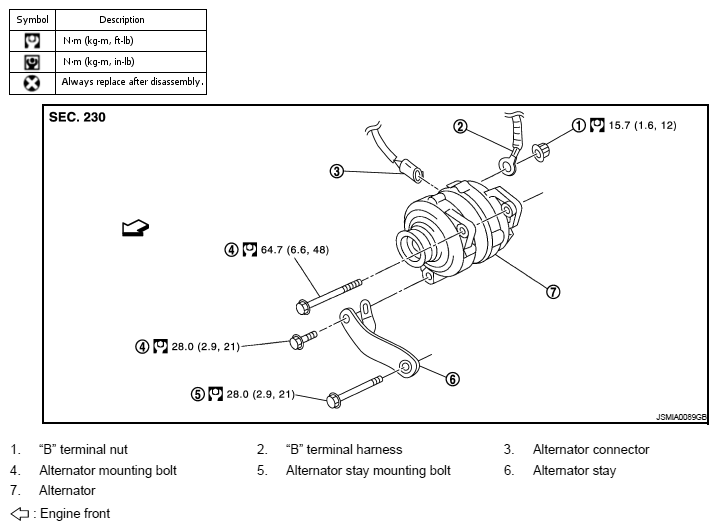

Fig 1: View Of Alternator (AWD) With Torque Specifications
G06302465Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
