Exploded View

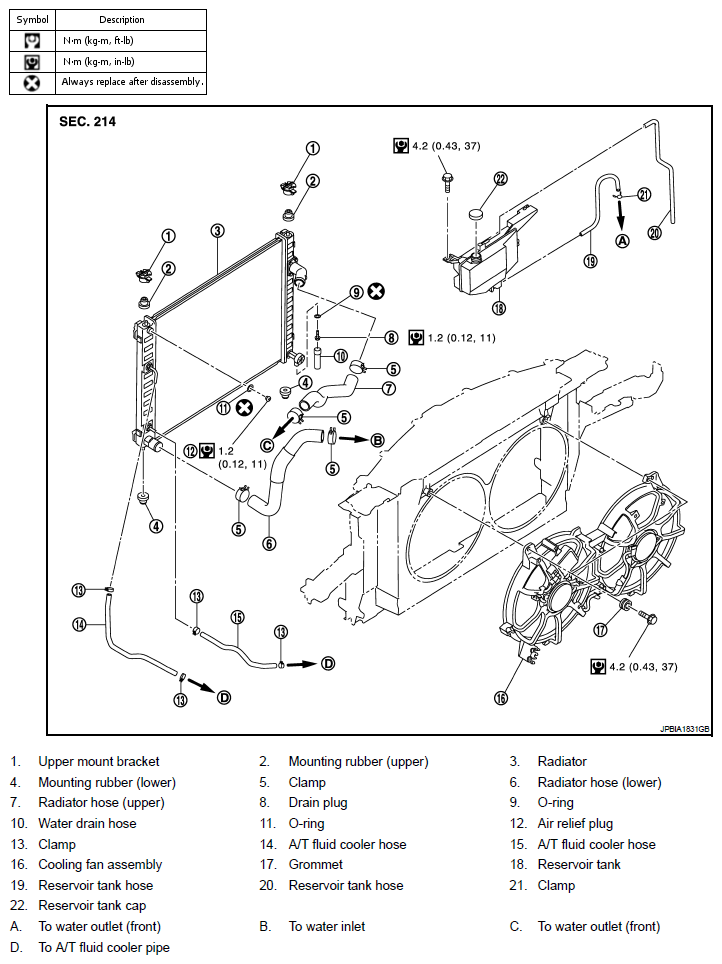

Fig 1: Exploded View Of Radiator With Torque Specifications
G06301593Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "Components " for symbols in the figure.
