Removal and Installation: Installation

Note the following, and install in the reverse order of removal.

• Surely clamp fuel hoses and insert hose to the length below.

  Fuel filler hose : 35 mm (1.38 in)

  The other hoses : 25 mm (0.98 in)

• Be sure hose clamp is not placed on swelled area of fuel tube.

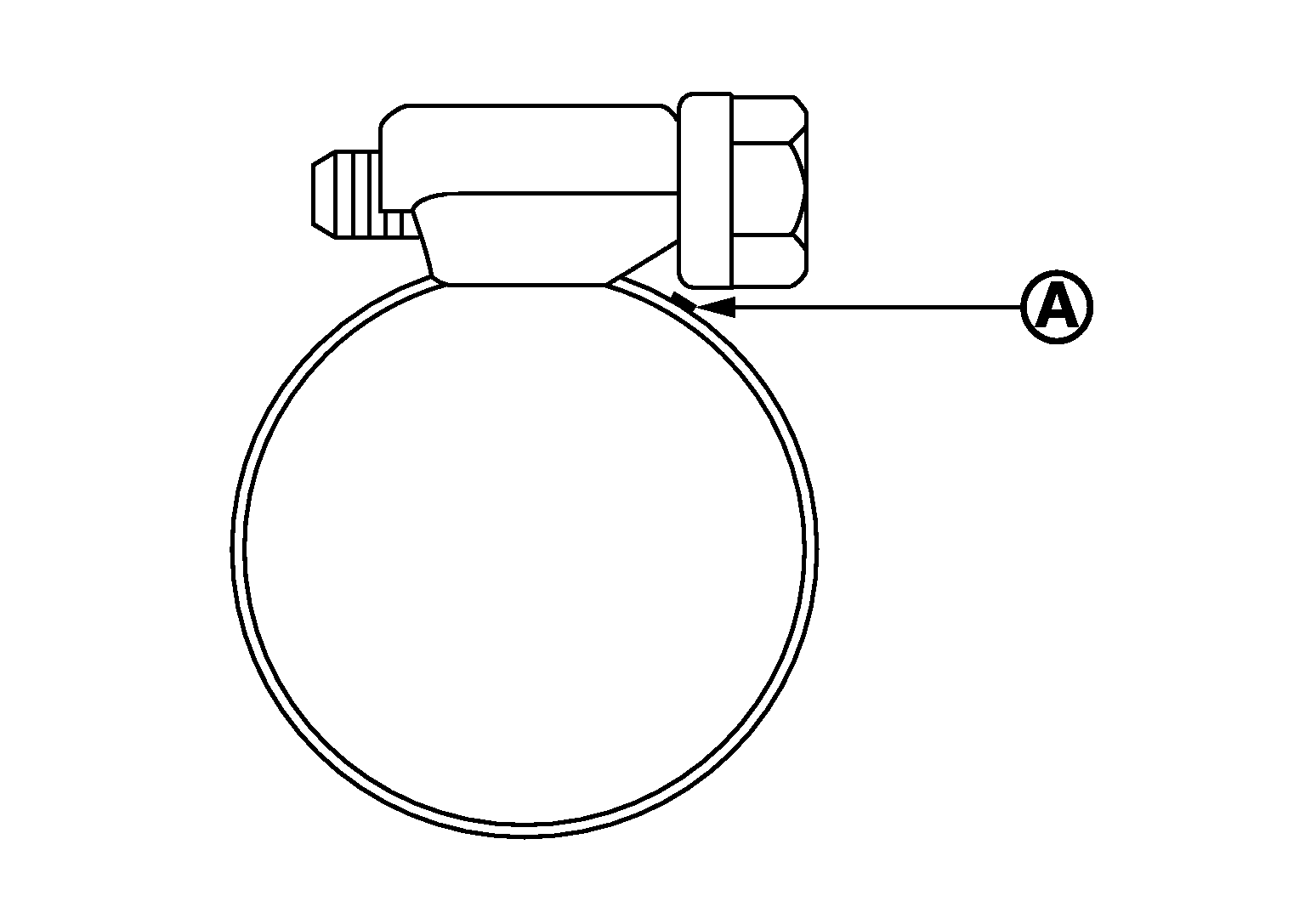

• Tighten the clamp band with the top mark (A) until the mark is on the bolt head flange.
  Fig 1: Identifying Clamp Band With Top Mark

  Courtesy of NISSAN MOTOR CO., U.S.A.
• To connect quick connector, refer to "REMOVAL AND INSTALLATION ".
