Exploded View: Removal

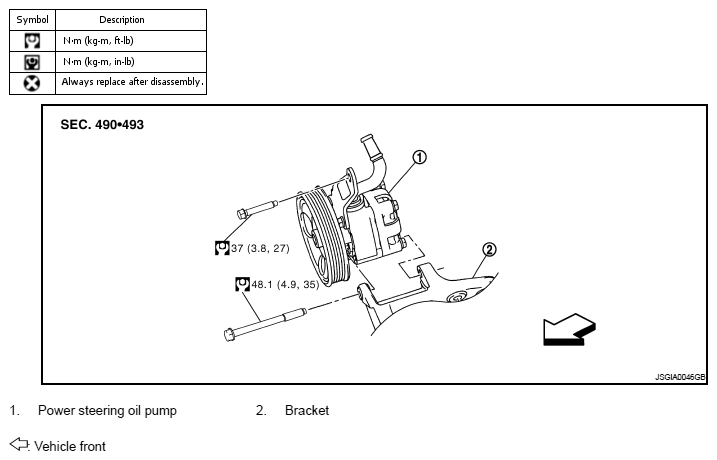

Fig 1: Power Steering Oil Pump And Bracket With Torque Specifications
G06302704Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
