Transmission Assembly: Assembly

As shown in the figure, use a drift [22 mm (0.87 in) dia. commercial service tool] to drive manual shaft oil seals into the transmission case until it is flush.
CAUTION:
- Never reuse manual shaft oil seals.
- Apply ATF to manual shaft oil seals.

  Fig 1: Installing Oil Seals
  Courtesy of NISSAN MOTOR CO., U.S.A.
Install detent spring and spacer in transmission case. Tighten detent spring and spacer bolt to the specified torque.

Fig 2: Identifying Detent Spring And Spacer
Courtesy of NISSAN MOTOR CO., U.S.A.

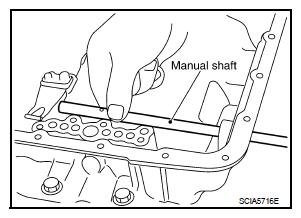

Install manual shaft to transmission case.

Fig 3: Identifying Manual Shaft
Courtesy of NISSAN MOTOR CO., U.S.A.
Install parking rod to manual plate.

Fig 4: Identifying Parking Rod And Manual Plate
Courtesy of NISSAN MOTOR CO., U.S.A.
Install manual plate (with parking rod) to manual shaft.

Fig 5: Identifying Manual Plate With Manual Shaft
Courtesy of NISSAN MOTOR CO., U.S.A.
Install retaining pin into the manual plate and manual shaft.
1. Fit pinhole of the manual plate to pinhole of the manual shaft with a pin punch.
2. Use a hammer to tap the retaining pin into the manual plate.
  CAUTION: Drive retaining pin to 2±0.5 mm (0.08±0.020 in) over the manual plate.

  Fig 6: Identifying Retaining Pin Into Manual Plate And Manual Shaft
  Courtesy of NISSAN MOTOR CO., U.S.A.
Install retaining pin into the transmission case and manual shaft.
1. Fit pinhole of the transmission case to pinhole of the manual shaft with a pin punch.
2. Use a hammer to tap the retaining pin into the transmission case.
  CAUTION: Drive retaining pin to 5±1 mm (0.20±0.04 in) over the transmission case.

  Fig 7: Identifying Retaining Pin Into Transmission Case And Manual Shaft
  Courtesy of NISSAN MOTOR CO., U.S.A.
Install O-rings to servo assembly.

Fig 8: Identifying Servo Assembly O-Rings
Courtesy of NISSAN MOTOR CO., U.S.A.
Install return spring to servo assembly.

Fig 9: Identifying Return Spring
Courtesy of NISSAN MOTOR CO., U.S.A.
Install servo assembly to transmission case.

Fig 10: Identifying Servo Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Install snap ring to transmission case with a pair of snap ring pliers.

Fig 11: Identifying Snap Ring With Pliers
Courtesy of NISSAN MOTOR CO., U.S.A.
Install D-rings to reverse brake piston.

Fig 12: Identifying Reverse Brake Piston D-Rings
Courtesy of NISSAN MOTOR CO., U.S.A.
Install reverse brake piston to transmission case.

Fig 13: Identifying Reverse Brake Piston
Courtesy of NISSAN MOTOR CO., U.S.A.
Install needle bearing to drum support edge surface.
CAUTION: Check the direction of needle bearing. Refer to "LOCATION OF ADJUSTING SHIMS, NEEDLE BEARINGS, THRUST WASHERS AND SNAP RINGS ".

Fig 14: Identifying Needle Bearing
Courtesy of NISSAN MOTOR CO., U.S.A.
Install seal rings to drum support.

Fig 15: Identifying Seal Rings
Courtesy of NISSAN MOTOR CO., U.S.A.
Install spring retainer and return spring to transmission case.

Fig 16: Identifying Spring Retainer
Courtesy of NISSAN MOTOR CO., U.S.A.

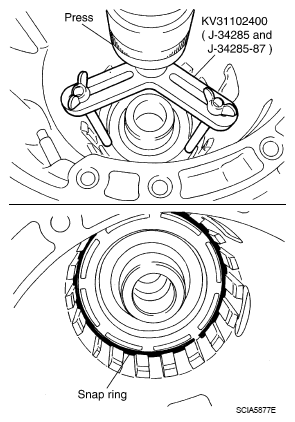

Set the SST on spring retainer and install snap ring (fixing spring retainer) to transmission case while compressing return spring.
CAUTION: Securely assemble them with a flat-bladed screwdriver so that snap ring tension is slightly weak.

Fig 17: Compressing Return Spring
Courtesy of NISSAN MOTOR CO., U.S.A.

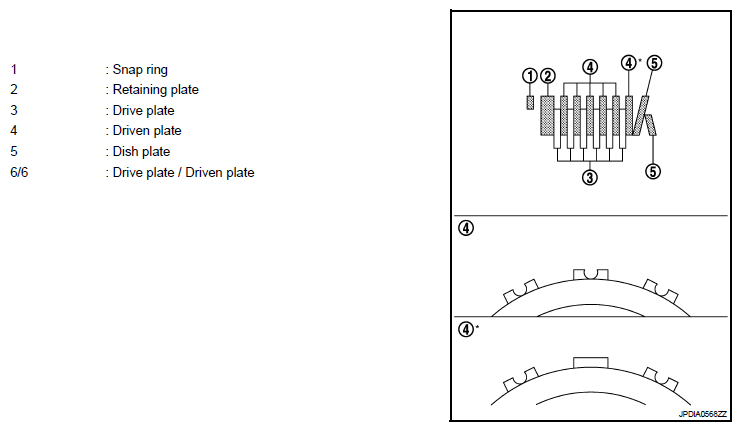

Install reverse brake drive plates, driven plates, dish plates, retaining plate and snap ring to transmission case.
CAUTION: Check order of plates.

Fig 18: Identifying Reverse Brake Drive Plates, Driven Plates, Dish Plates, Retaining Plate And Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.

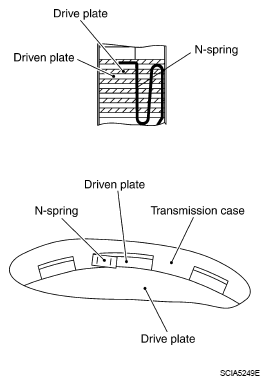

Assemble N-spring.
Install reverse brake retaining plate to transmission case.

Fig 19: Identifying N-Spring, Transmission Case And Drive Plate
Courtesy of NISSAN MOTOR CO., U.S.A.
Install snap ring to transmission case.

Fig 20: Identifying Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.
Measure clearance between retaining plate and snap ring. If not within specified clearance, select proper retaining plate.
Specified clearance "A"

Standard: "REVERSE BRAKE ".

Retaining plate: Refer to "REVERSE BRAKE "

Fig 21: Measuring Clearance Between Retaining Plate And Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.
Install needle bearing to transmission case.
CAUTION: Check the direction of needle bearing. Refer to "LOCATION OF ADJUSTING SHIMS, NEEDLE BEARINGS, THRUST WASHERS AND SNAP RINGS ".

Fig 22: Identifying Needle Bearing
Courtesy of NISSAN MOTOR CO., U.S.A.

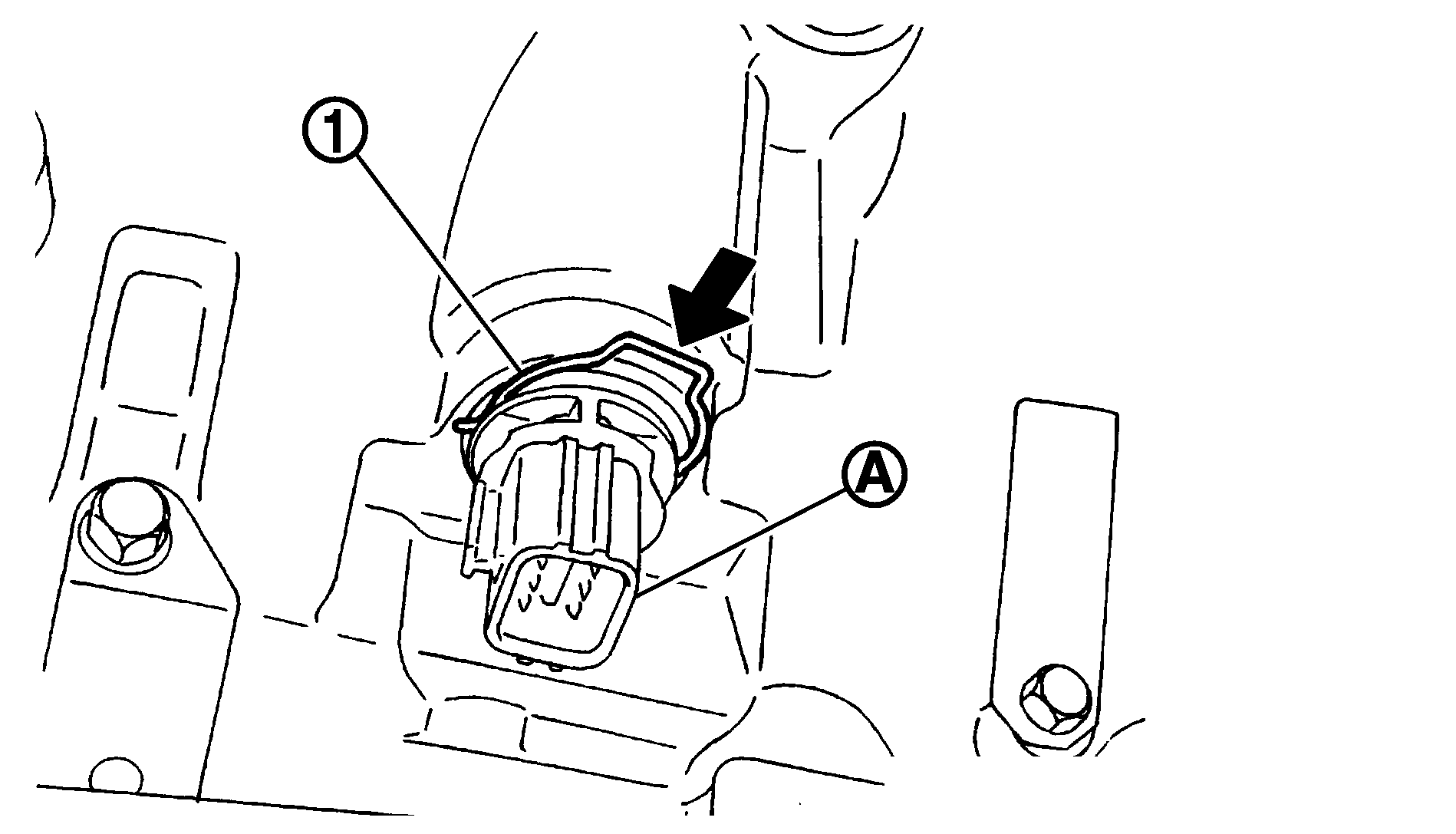

Install revolution sensor to transmission case. Tighten revolution sensor bolt to the specified torque.
CAUTION:
- Never subject it to impact by dropping or hitting it.
- Never disassemble.
- Never allow metal filings, etc. to get on the sensor's front edge magnetic area.
- Never place in an area affected by magnetism.

  Fig 23: Locating Revolution Sensor
  Courtesy of NISSAN MOTOR CO., U.S.A.

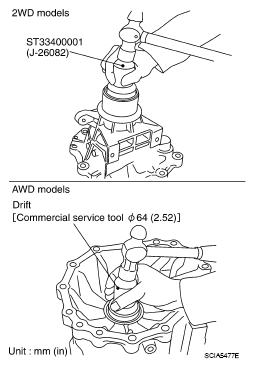

As shown in the figure, use the drift to drive rear oil seal into the rear extension (2WD) or adapter case (AWD) until it is flush.
CAUTION:
- Never reuse rear oil seal.
- Apply ATF to rear oil seal.

  Fig 24: Tapping Drive Rear Oil Seal
  Courtesy of NISSAN MOTOR CO., U.S.A.
Install return spring (1) to parking pawl (2).

Fig 25: Identifying Return Spring And Parking Pawl
Courtesy of NISSAN MOTOR CO., U.S.A.
Install parking pawl (with return spring) and pawl shaft to rear extension (2WD) or adapter case (AWD).

Fig 26: Identifying Parking Pawl And Pawl Shaft
Courtesy of NISSAN MOTOR CO., U.S.A.
Install parking actuator support to rear extension (2WD) or adapter case (AWD).

Fig 27: Identifying Parking Actuator Support
Courtesy of NISSAN MOTOR CO., U.S.A.
Install needle bearing (1) to rear extension (2WD) or adapter case (AWD).
CAUTION: Check the direction of needle bearing. Refer to "LOCATION OF ADJUSTING SHIMS, NEEDLE BEARINGS, THRUST WASHERS AND SNAP RINGS ".

Fig 28: Identifying Needle Bearing
Courtesy of NISSAN MOTOR CO., U.S.A.
Install rear extension assembly (2WD) or adapter case assembly (AWD) according to the following procedures.
1. 2WD

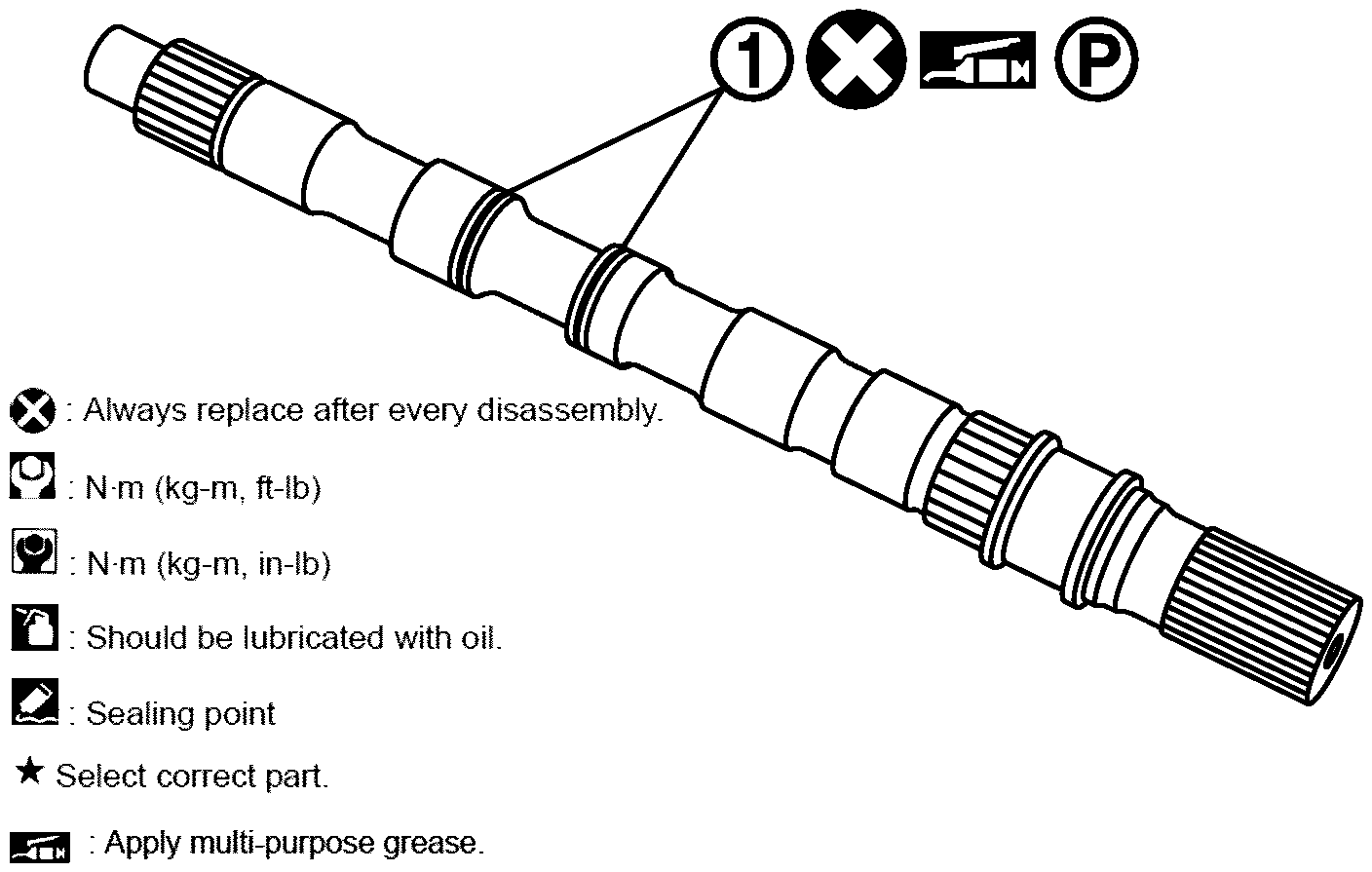

  1. Install seal rings (1) to output shaft.

    Fig 29: Identifying Output Shaft Seal Rings
    Courtesy of NISSAN MOTOR CO., U.S.A.

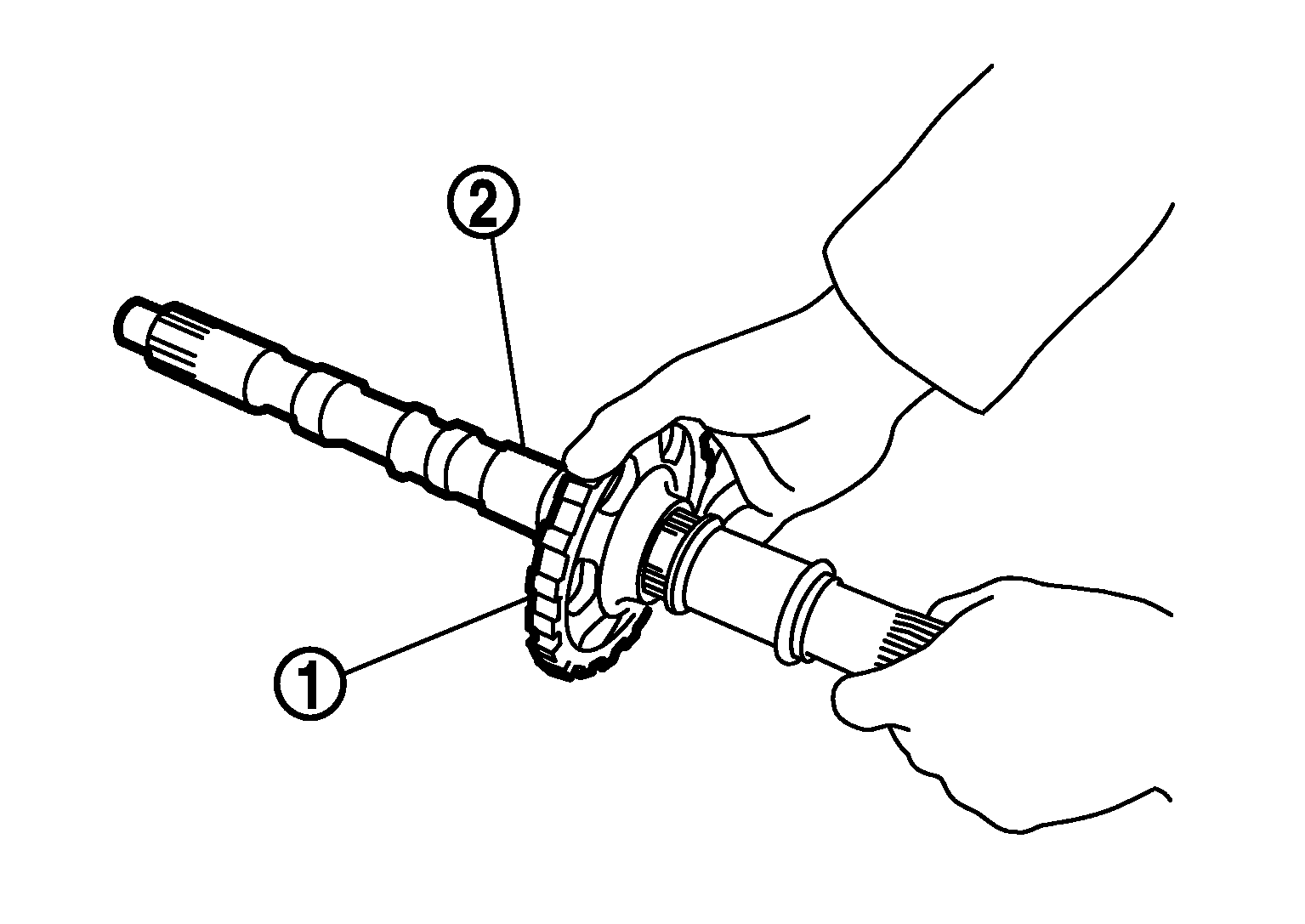

  2. Install parking gear (1) to output shaft (2).

    Fig 30: Identifying Parking Gear And Output Shaft
    Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Install output shaft to transmission case.
    CAUTION: Be careful not to mistake front for rear because both sides looks similar. (Thinner end is front side.)

    Fig 31: Installing Output Shaft To Transmission Case
    Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Install bearing race to output shaft.

    Fig 32: Identifying Bearing Race And Output Shaft
    Courtesy of NISSAN MOTOR CO., U.S.A.

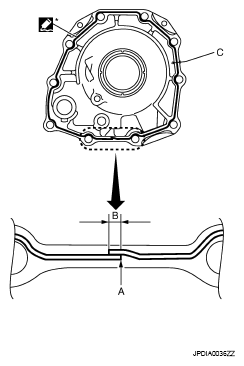

  5. Apply recommended sealant (Genuine Anaerobic Liquid Gasket or equivalent. Refer to "RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS ".) to rear extension assembly as shown in the figure.
    A : Start and finish point shall be in the center of two bolts.

    B : 3 - 5 mm (0.12 - 0.20 in)

    Sealant width (C) : 1.0 - 2.0 mm (0.04 - 0.08 in)

    Sealant height (C) : 0.4 - 1.0 mm (0.016 - 0.04 in)

    Fig 33: Identifying Sealant Applying Area
    Courtesy of NISSAN MOTOR CO., U.S.A.

    CAUTION: Completely remove all moisture, oil and old sealant, etc. from the transmission case and rear extension assembly mounting surfaces.
  6. Install rear extension assembly to transmission case.
    CAUTION: Insert the tip of parking rod between the parking pawl and the parking actuator support when assembling the rear extension assembly.

    Fig 34: Identifying Rear Extension Assembly
    Courtesy of NISSAN MOTOR CO., U.S.A.

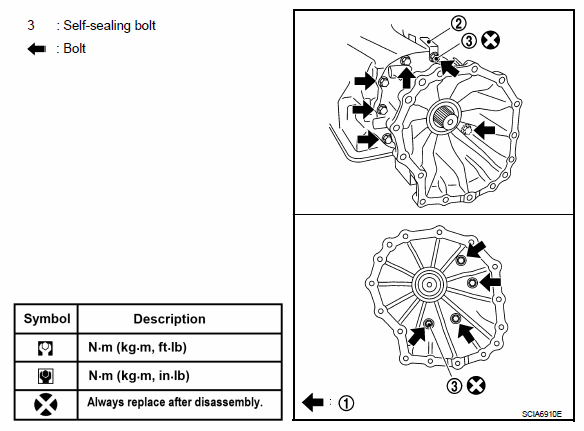

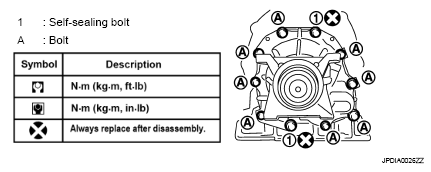

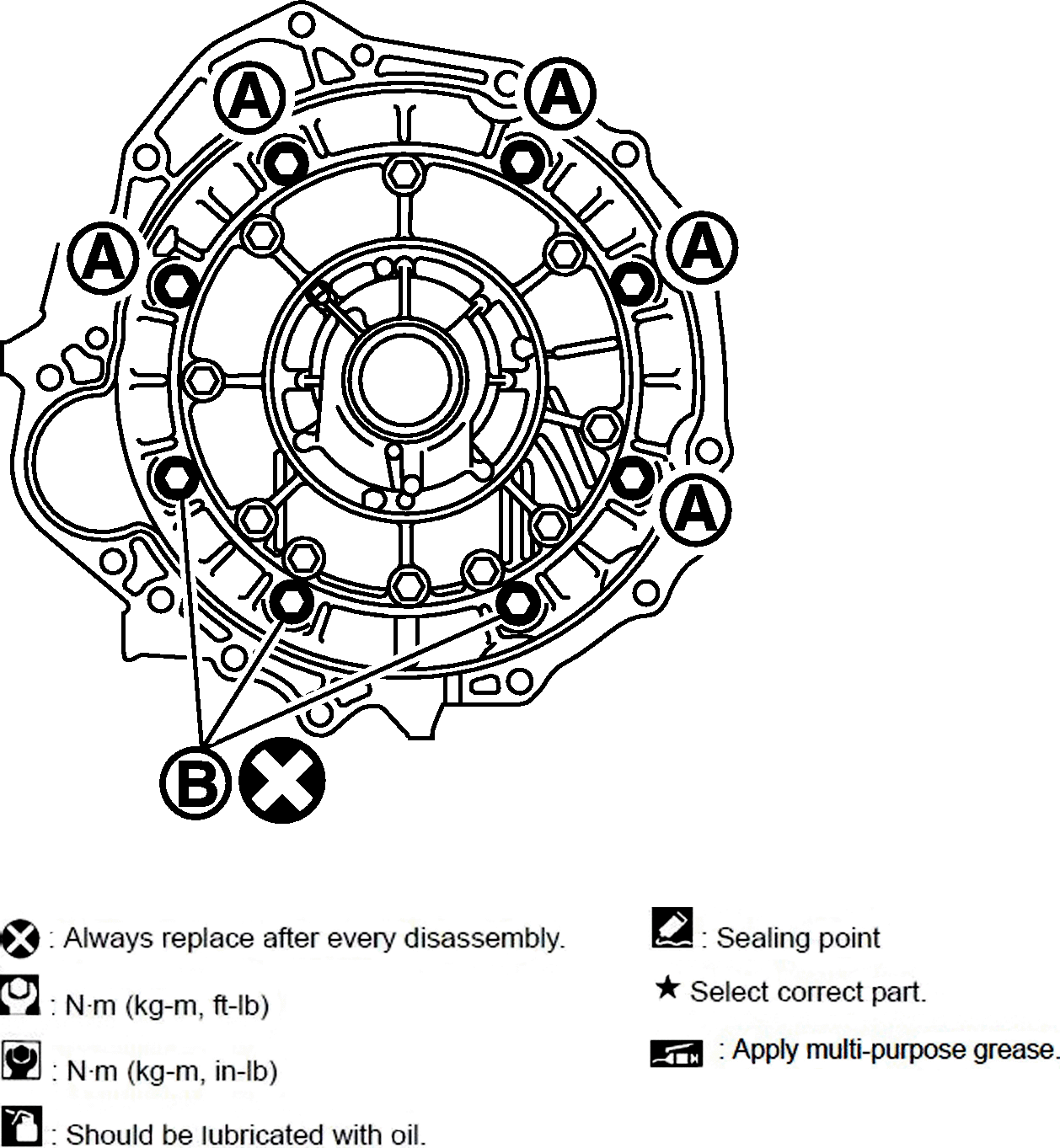

  7. Tighten rear extension assembly bolts to the specified torque.
    1 : Self-sealing bolt

    A : Bolt

    Fig 35: Identifying Rear Extension Assembly Bolts
    Courtesy of NISSAN MOTOR CO., U.S.A.
2. AWD
  1. Install seal rings (1) to output shaft.

    Fig 36: Identifying Output Shaft Seal Rings
    Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Install parking gear (1) to output shaft (2).

    Fig 37: Identifying Parking Gear And Output Shaft
    Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Install output shaft in transmission case.
    CAUTION: Be careful not to mistake front for rear because both sides looks similar. (Thinner end is front side.)

    Fig 38: Installing Output Shaft To Transmission Case
    Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Install bearing race to output shaft.

    Fig 39: Identifying Bearing Race And Output Shaft
    Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Install gasket onto transmission case.
    CAUTION:
    Completely remove all moisture, oil and old gasket, etc. from the transmission case and adapter case assembly mounting surfaces.

    Never reuse gasket.

    Fig 40: Identifying Transmission Case Gasket
    Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Install adapter case assembly to transmission case.
    CAUTION: Insert the tip of parking rod between the parking pawl and the parking actuator support when assembling the adapter case assembly.

    Fig 41: Identifying Adapter Case Assembly
    Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Tighten adapter case assembly bolts (1) to the specified torque. [With bracket (2).]

    Fig 42: Locating Transmission Case Bolts
    Courtesy of NISSAN MOTOR CO., U.S.A.
Install needle bearing in drum support.
CAUTION: Check the direction of needle bearing. Refer to "LOCATION OF ADJUSTING SHIMS, NEEDLE BEARINGS, THRUST WASHERS AND SNAP RINGS ".

Fig 43: Identifying Needle Bearing And Drum Support
Courtesy of NISSAN MOTOR CO., U.S.A.
Install direct clutch assembly in reverse brake.
CAUTION: Make sure that drum support edge surface and direct clutch inner boss edge surface come to almost same place.

Fig 44: Identifying Direct Clutch Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Install high and low reverse clutch assembly in direct clutch.

Fig 45: Identifying High And Low Reverse Clutch Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Align the drive plate with a flat-bladed screwdriver.

Fig 46: Aligning Drive Plate With Flat-Bladed Screwdriver
Courtesy of NISSAN MOTOR CO., U.S.A.
Install high and low reverse clutch hub, mid sun gear assembly and rear sun gear assembly as a unit.

Fig 47: Identifying Mid Sun Gear Assembly And Rear Sun Gear Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: Make sure that portion "A" of high and low reverse clutch drum protrudes approximately 2 mm (0.08 in) beyond portion "B" of rear sun gear.

Fig 48: Identifying High And Low Reverse Clutch Drum
Courtesy of NISSAN MOTOR CO., U.S.A.
Install needle bearing to rear carrier assembly.
CAUTION: Check the direction of needle bearing. Refer to "LOCATION OF ADJUSTING SHIMS, NEEDLE BEARINGS, THRUST WASHERS AND SNAP RINGS ".

Fig 49: Identifying Needle Bearing
Courtesy of NISSAN MOTOR CO., U.S.A.
Install bearing race to rear carrier assembly.
CAUTION: Check the direction of needle bearing. Refer to "LOCATION OF ADJUSTING SHIMS, NEEDLE BEARINGS, THRUST WASHERS AND SNAP RINGS ".

Fig 50: Identifying Bearing Race
Courtesy of NISSAN MOTOR CO., U.S.A.
Install rear carrier assembly to direct clutch drum.

Fig 51: Identifying Rear Carrier Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Install needle bearing (rear side) to mid carrier assembly.
CAUTION: Check the direction of needle bearing. Refer to "LOCATION OF ADJUSTING SHIMS, NEEDLE BEARINGS, THRUST WASHERS AND SNAP RINGS ".

Fig 52: Identifying Needle Bearing (Rear Side)
Courtesy of NISSAN MOTOR CO., U.S.A.
Install needle bearing (front side) to mid carrier assembly.
CAUTION: Check the direction of needle bearing. Refer to "LOCATION OF ADJUSTING SHIMS, NEEDLE BEARINGS, THRUST WASHERS AND SNAP RINGS ".

Fig 53: Identifying Needle Bearing (Front Side)
Courtesy of NISSAN MOTOR CO., U.S.A.
Install mid carrier assembly to rear carrier assembly.

Fig 54: Identifying Mid Carrier Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Install front carrier assembly, input clutch assembly and rear internal gear as a unit.

Fig 55: Identifying Front Carrier Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Install seal rings to input clutch assembly.

Fig 56: Identifying Input Clutch Assembly Seal Rings
Courtesy of NISSAN MOTOR CO., U.S.A.
Install band servo anchor end pin and lock nut to transmission case.

Fig 57: Identifying Band Servo Anchor End Pin
Courtesy of NISSAN MOTOR CO., U.S.A.

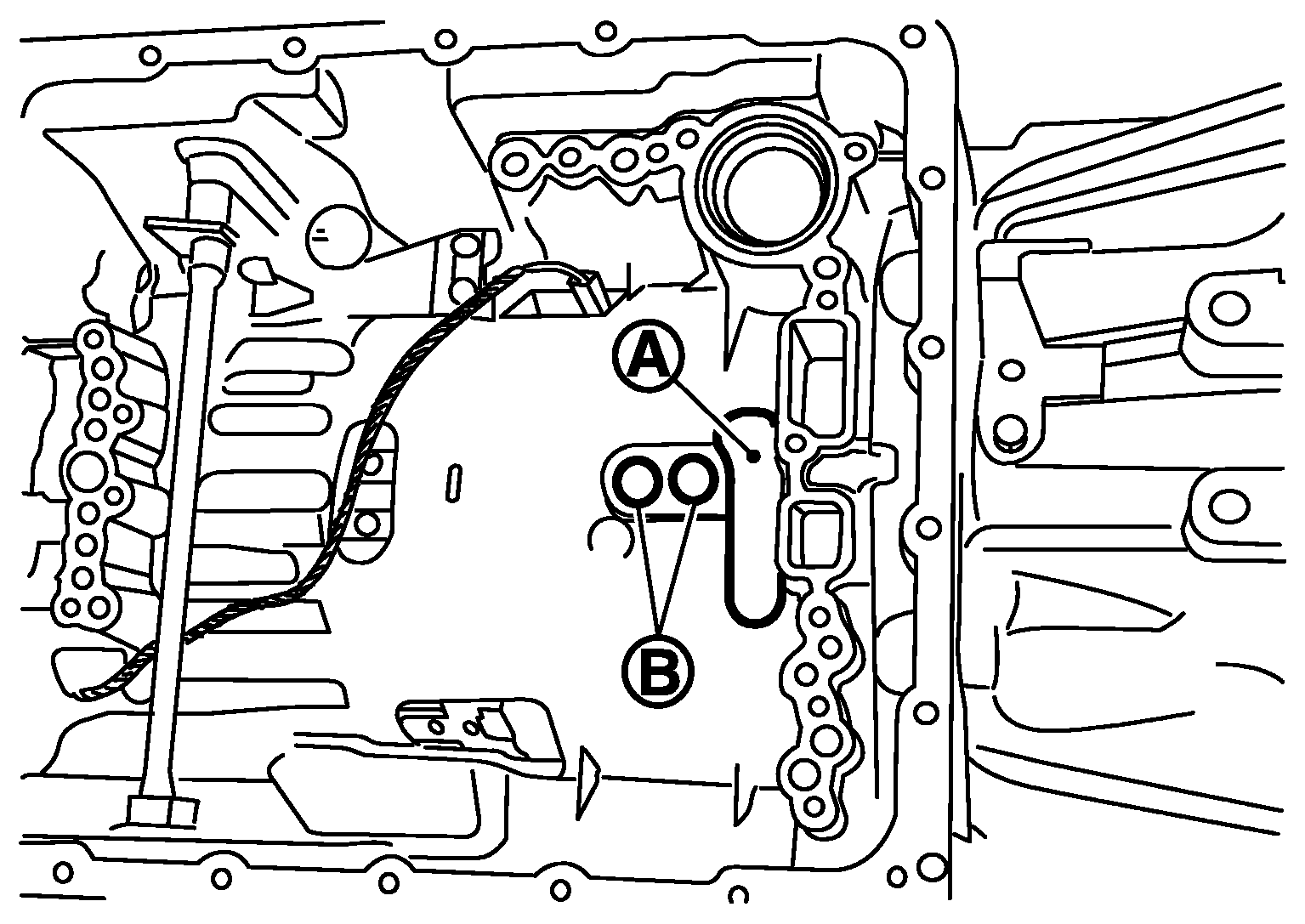

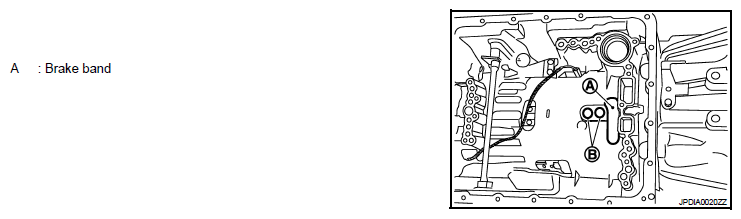

Install brake band to transmission case.
CAUTION: Assemble it so that identification to avoid incorrect installation faces servo side.

Fig 58: Identifying Brake Band Incorrect Installation Position
Courtesy of NISSAN MOTOR CO., U.S.A.
Install front sun gear assembly to front carrier assembly.
CAUTION: Apply ATF to front sun gear bearing and 3rd one-way clutch end bearing.

Fig 59: Identifying Front Sun Gear Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Install needle bearing to front sun gear.
CAUTION: Check the direction of needle bearing. Refer to "LOCATION OF ADJUSTING SHIMS, NEEDLE BEARINGS, THRUST WASHERS AND SNAP RINGS ".

Fig 60: Identifying Needle Bearing
Courtesy of NISSAN MOTOR CO., U.S.A.
Adjust brake band tilting using a clip so that brake band contacts front sun gear drum evenly.

Fig 61: Adjusting Brake Band Tilting
Courtesy of NISSAN MOTOR CO., U.S.A.
Adjust brake band.
1. Loosen lock nut.
2. Tighten band servo anchor end pin to specified torque.
  Torque : 5.0 N.m (0.51 kg-m, 44 in-lb)

  Fig 62: Identifying Brake Band Incorrect Installation Position
  Courtesy of NISSAN MOTOR CO., U.S.A.
3. Back of band servo anchor end pin three turns.
4. Holding band servo anchor end pin, tighten lock nut to the specified torque.
Adjustment of total end play.
- Measure clearance between front sun gear and bearing race for oil pump cover.
- Select proper thickness of bearing race so that end play is within specifications.

  Fig 63: Measuring Clearance Between Front Sun Gear And Bearing Race For Oil Pump Cover
  Courtesy of NISSAN MOTOR CO., U.S.A.
1. Measure dimensions "K" and "L" and then calculate dimension "J".

  Fig 64: Measuring Dimensions K And L
  Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Measure dimension "K".

    Fig 65: Measuring Dimension K
    Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Measure dimension "L".
  3. Calculate dimension "J".
    "J" : Distance between oil pump fitting surface of transmission case and needle bearing mating surface of front sun gear.

    J = K - L

    Fig 66: Measuring Dimension L
    Courtesy of NISSAN MOTOR CO., U.S.A.
2. Measure dimensions "M1" and "M2" and then calculate dimension "M".

  Fig 67: Measuring Dimensions M1 And M2
  Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Place bearing race and needle bearing on oil pump assembly.

    Fig 68: Identifying Bearing Race And Needle Bearing With Oil Pump Assembly
    Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Measure dimension "M1".

    Fig 69: Measuring Dimension M1
    Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Measure dimension "M2".

    Fig 70: Measuring Dimension M2
    Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Calculate dimension "M".
    "M" : Distance between transmission case fitting surface of oil pump and needle bearing on oil pump.

    M = M1- M2

    Fig 71: Identifying Distance Between Transmission Case Fitting Surface Of Oil Pump And Needle Bearing
    Courtesy of NISSAN MOTOR CO., U.S.A.
3. Adjust total end play "T1".
  T1 = J - M

  Total end play "T1" : Refer to "TOTAL END PLAY ".
  - Select proper thickness of bearing race so that total end play is within specifications.
    Bearing races : Refer to "TOTAL END PLAY ".

    Fig 72: Adjusting Total End Play T1
    Courtesy of NISSAN MOTOR CO., U.S.A.
Install O-ring to oil pump assembly.

Fig 73: Identifying Oil Pump Assembly O-Ring
Courtesy of NISSAN MOTOR CO., U.S.A.
Install bearing race to oil pump assembly.

Fig 74: Identifying Bearing Race From Oil Pump Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Install oil pump assembly to transmission case.
CAUTION: Apply ATF to oil pump bearing.

Fig 75: Identifying Oil Pump Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Apply recommended sealant (Genuine RTV Silicone Sealant or equivalent. Refer to "RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS ".) to oil pump assembly as shown in the figure.
CAUTION: Completely remove all moisture, oil and old sealant, etc. from the oil pump mounting bolts and oil pump mounting bolt mounting surfaces.

Fig 76: Identifying Sealant Applying Area
Courtesy of NISSAN MOTOR CO., U.S.A.
Tighten oil pump bolts to the specified torque.
CAUTION: Apply ATF to oil pump bushing.

Fig 77: Locating Oil Pump Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.
Install O-ring to input clutch assembly.

Fig 78: Locating Input Clutch Assembly O-Ring
Courtesy of NISSAN MOTOR CO., U.S.A.
Install converter housing to transmission case, and then tighten converter housing bolts (A) and self-sealing bolt (B) to the specified torque.

Fig 79: Locating Converter Housing Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.
Make sure that brake band (A) does not close turbine revolution sensor holes (B).

Fig 80: Identifying Turbine Revolution Sensor Holes
Courtesy of NISSAN MOTOR CO., U.S.A.

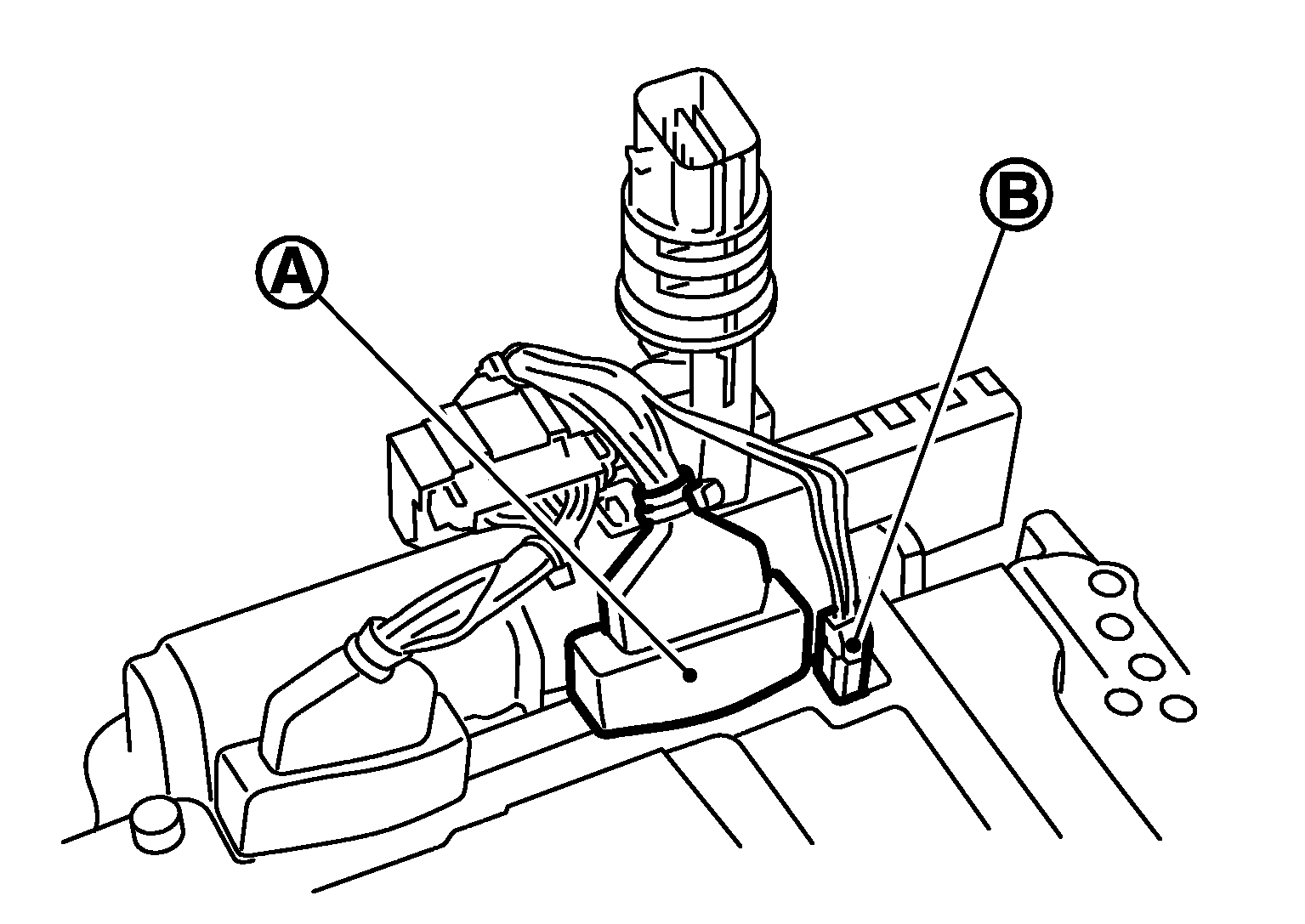

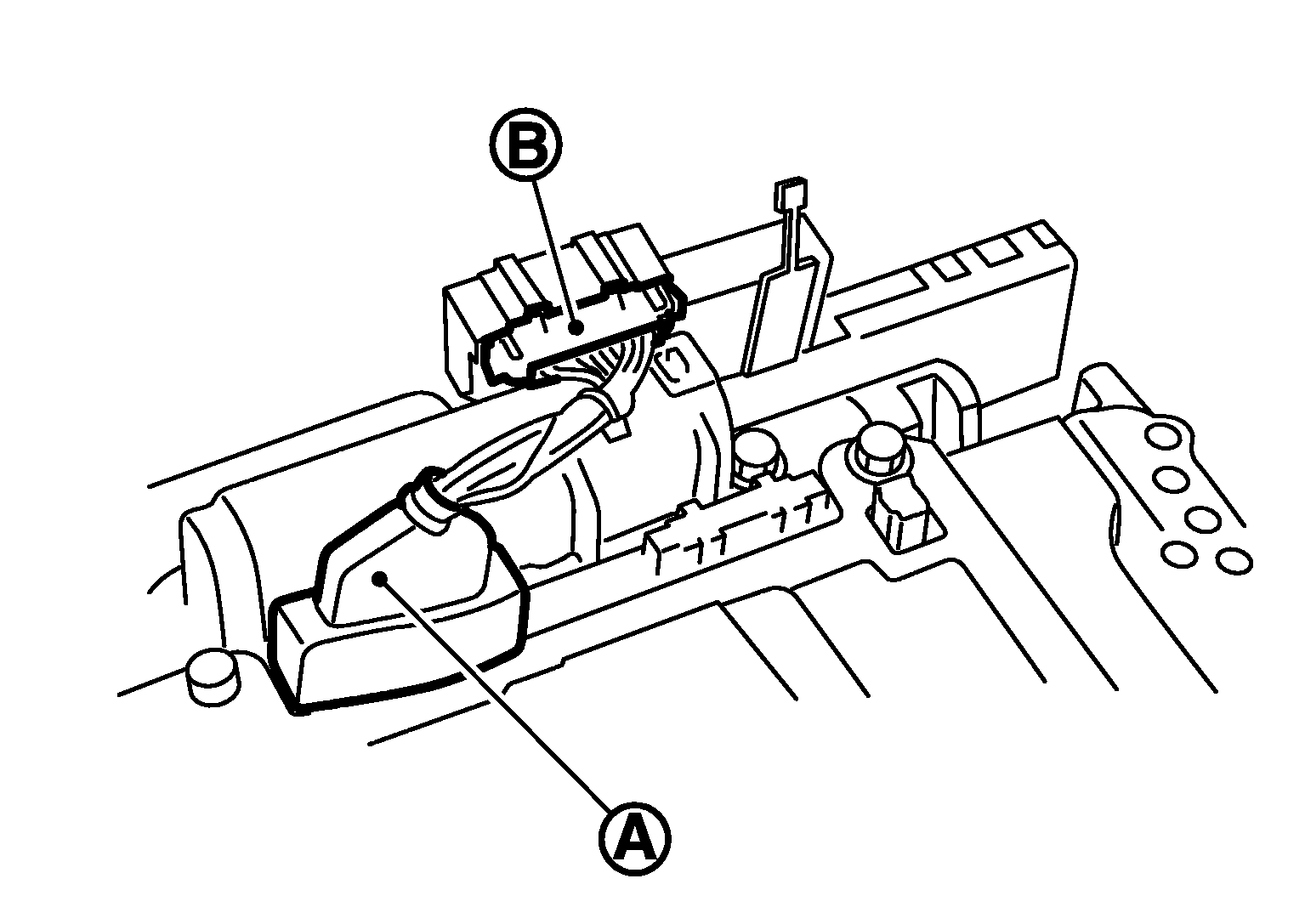

Connect TCM connector (A) and park/neutral position switch connector (B).

Fig 81: Identifying TCM Connector And Park/Neutral Position Switch Connector
Courtesy of NISSAN MOTOR CO., U.S.A.

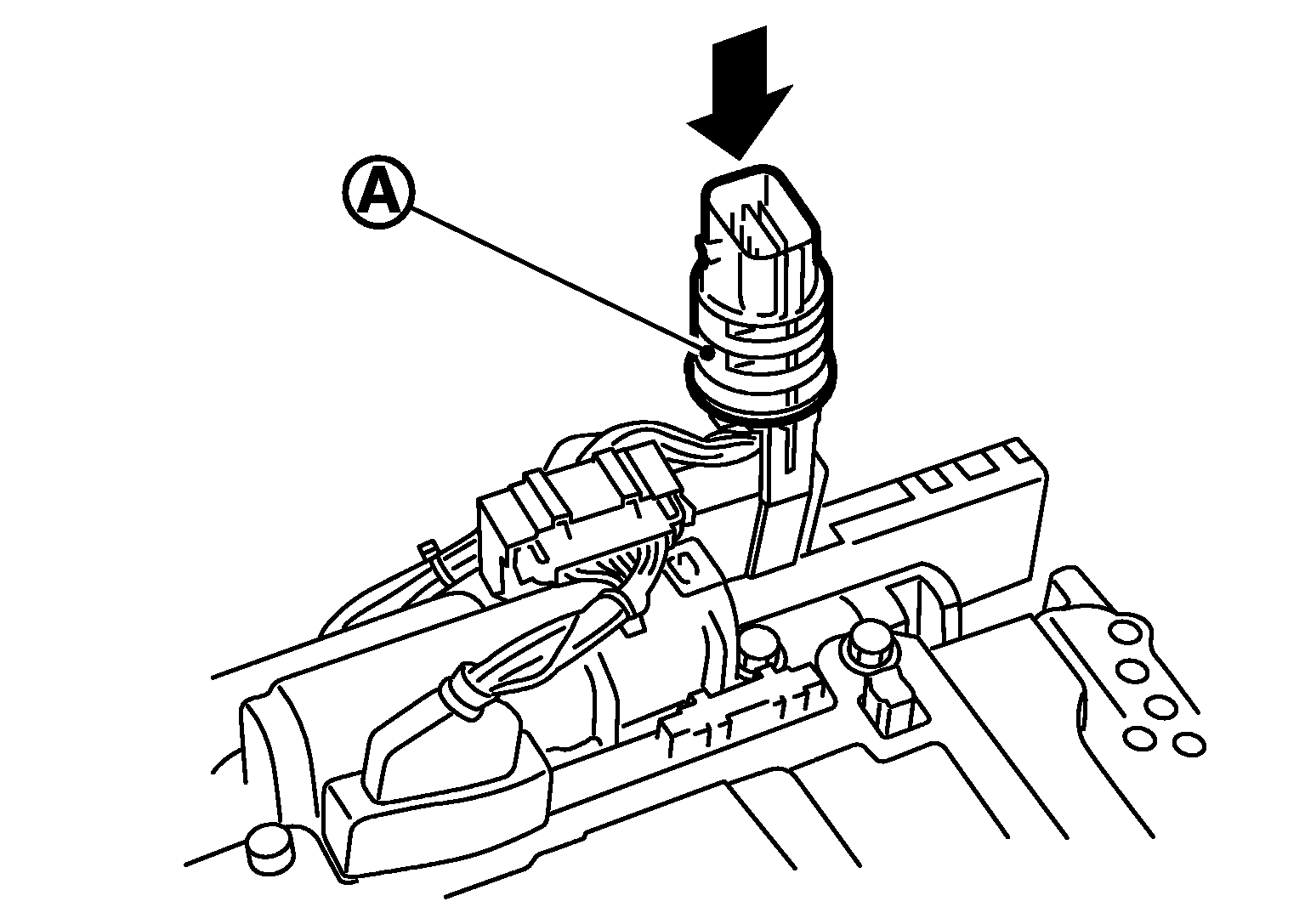

Install A/T assembly connector (A) to control valve with TCM.

Fig 82: Installing A/T Assembly Connector To Control Valve With TCM
Courtesy of NISSAN MOTOR CO., U.S.A.
Connect TCM connectors (A) and (B).

Fig 83: Identifying TCM Connectors
Courtesy of NISSAN MOTOR CO., U.S.A.

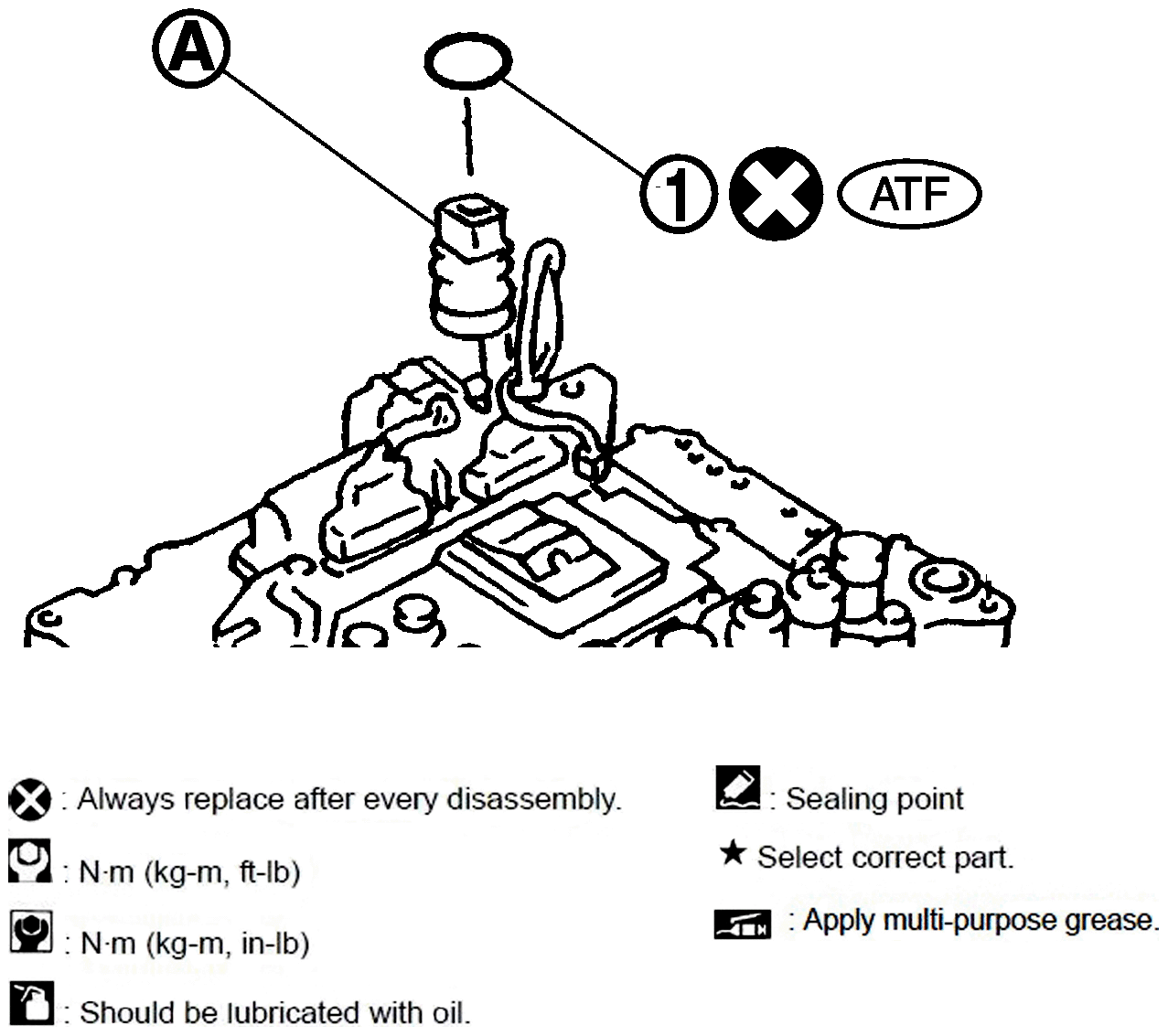

Install O-ring (1) to A/T assembly connector (A).

Fig 84: Identifying O-Ring And A/T Assembly Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Install bracket (1) to A/T fluid temperature sensor 2 (2).

Fig 85: Identifying A/T Fluid Temperature Sensor 2
Courtesy of NISSAN MOTOR CO., U.S.A.
Install A/T fluid temperature sensor 2 (1) [with bracket (2)] to control valve with TCM. Tighten A/T fluid temperature sensor 2 bolt to the specified torque.
CAUTION: Adjust bolt hole of bracket to bolt hole of control valve.

Fig 86: Identifying A/T Fluid Temperature Sensor 2 With Bracket
Courtesy of NISSAN MOTOR CO., U.S.A.
Install control valve with TCM to transmission case.
CAUTION:
- Make sure that turbine revolution sensor securely installs turbine revolution sensor holes (B).
  A : Brake band
- Hang down revolution sensor harness toward outside so as not to disturb installation of control valve with TCM.
- Adjust A/T assembly harness connector of control valve with TCM to terminal hole of transmission case.

  Fig 87: Identifying Turbine Revolution Sensor Holes
  Courtesy of NISSAN MOTOR CO., U.S.A.
- Assemble it so that manual valve cutout is engaged with manual plate projection.

  Fig 88: Identifying Manual Valve With Manual Plate
  Courtesy of NISSAN MOTOR CO., U.S.A.

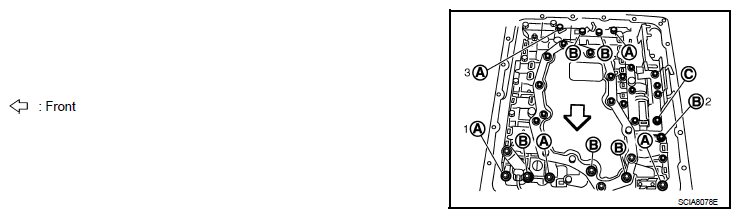

Install bolts (A), (B) and (C) in control valve with TCM. Tighten bolt 1, 2 and 3 temporarily to prevent dislocation. After that tighten them in order (1 → 2 → 3), and then tighten other bolts. Tighten control valve with TCM bolts to the specified torque.

Fig 89: Identifying Control Valve Bolts With TCM

Courtesy of NISSAN MOTOR CO., U.S.A.

BOLT SYMBOL SPECIFICATION

Bolt symbol	A	B	C
Number of bolts	5	6	1
Length mm (in)	42 (1.65)	55 (2.17)	40 (1.57)
Tightening torque N.m (km-g, in-lb)	7.9 (0.81, 70)		With ATF applied
Tightening torque N.m (km-g, in-lb)	7.9 (0.81, 70)		7.9 (0.81, 70)

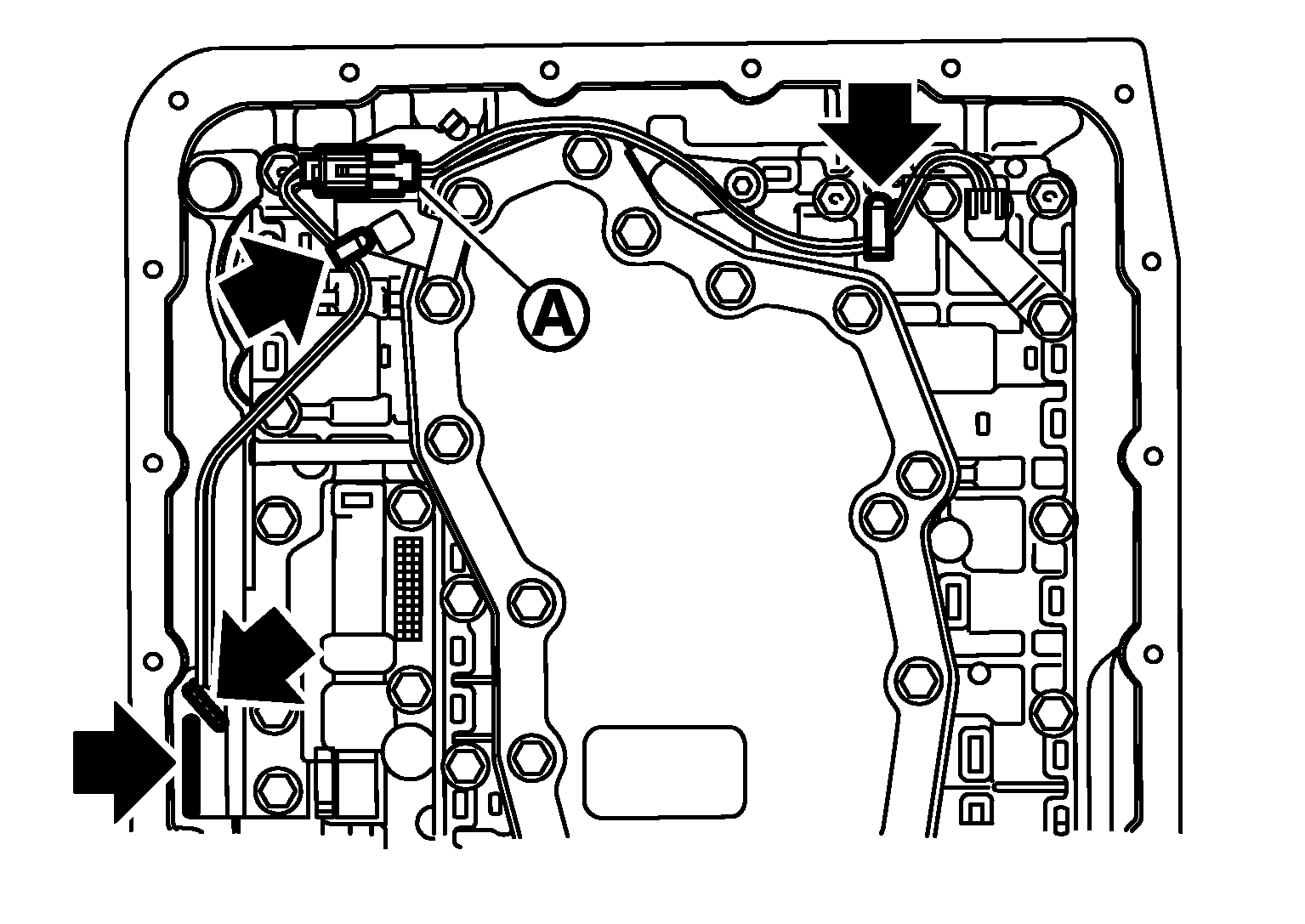

Connect A/T fluid temperature sensor 2 connector (A).
Engage terminal cord assembly and A/T fluid temperature sensor 2 harness with terminal clips (<==).

Fig 90: Locating Terminal Clips
Courtesy of NISSAN MOTOR CO., U.S.A.

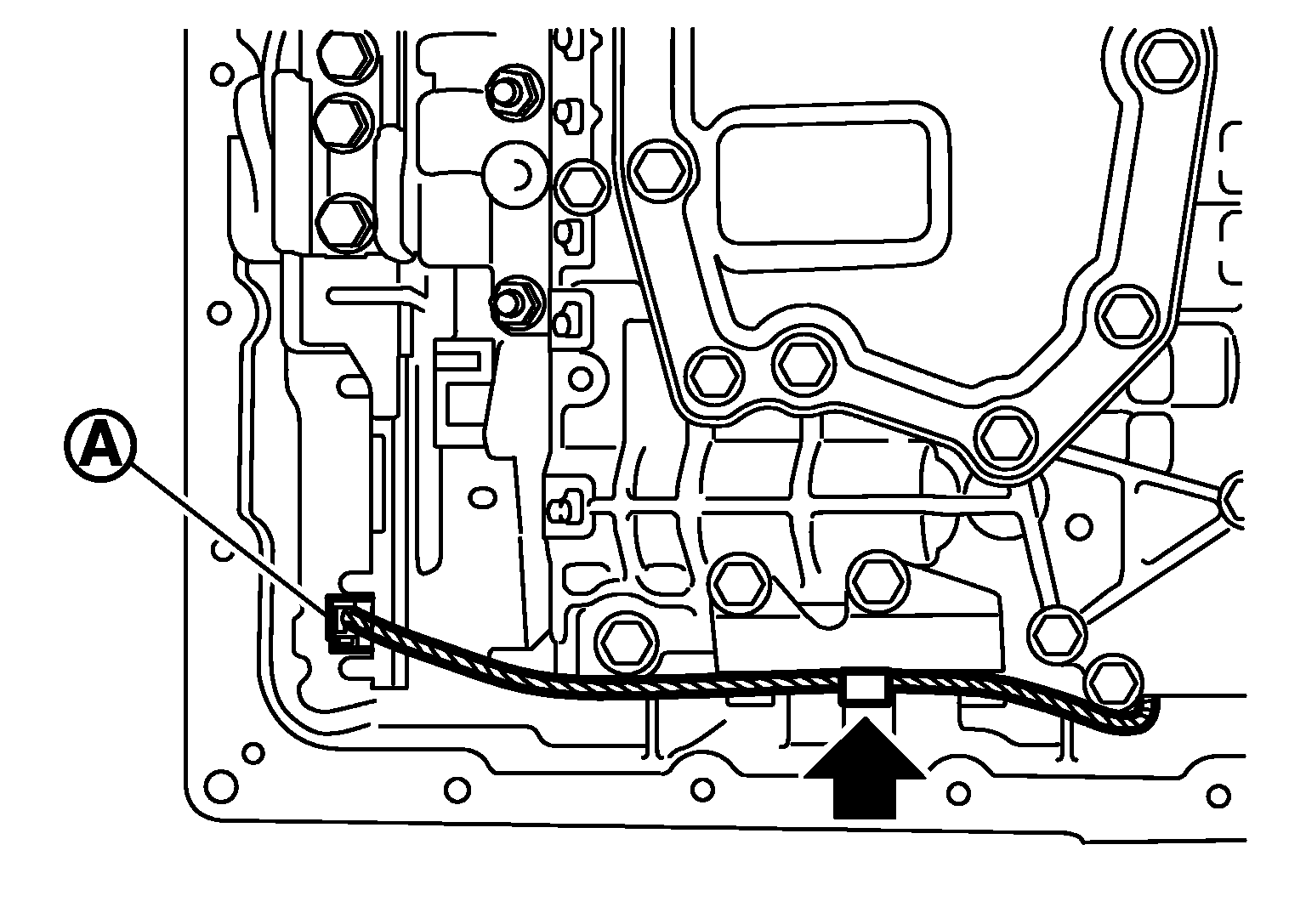

Connect revolution sensor connector (A).
Engage revolution sensor harness with terminal clip (<==).

Fig 91: Locating Revolution Sensor Connector
Courtesy of NISSAN MOTOR CO., U.S.A.

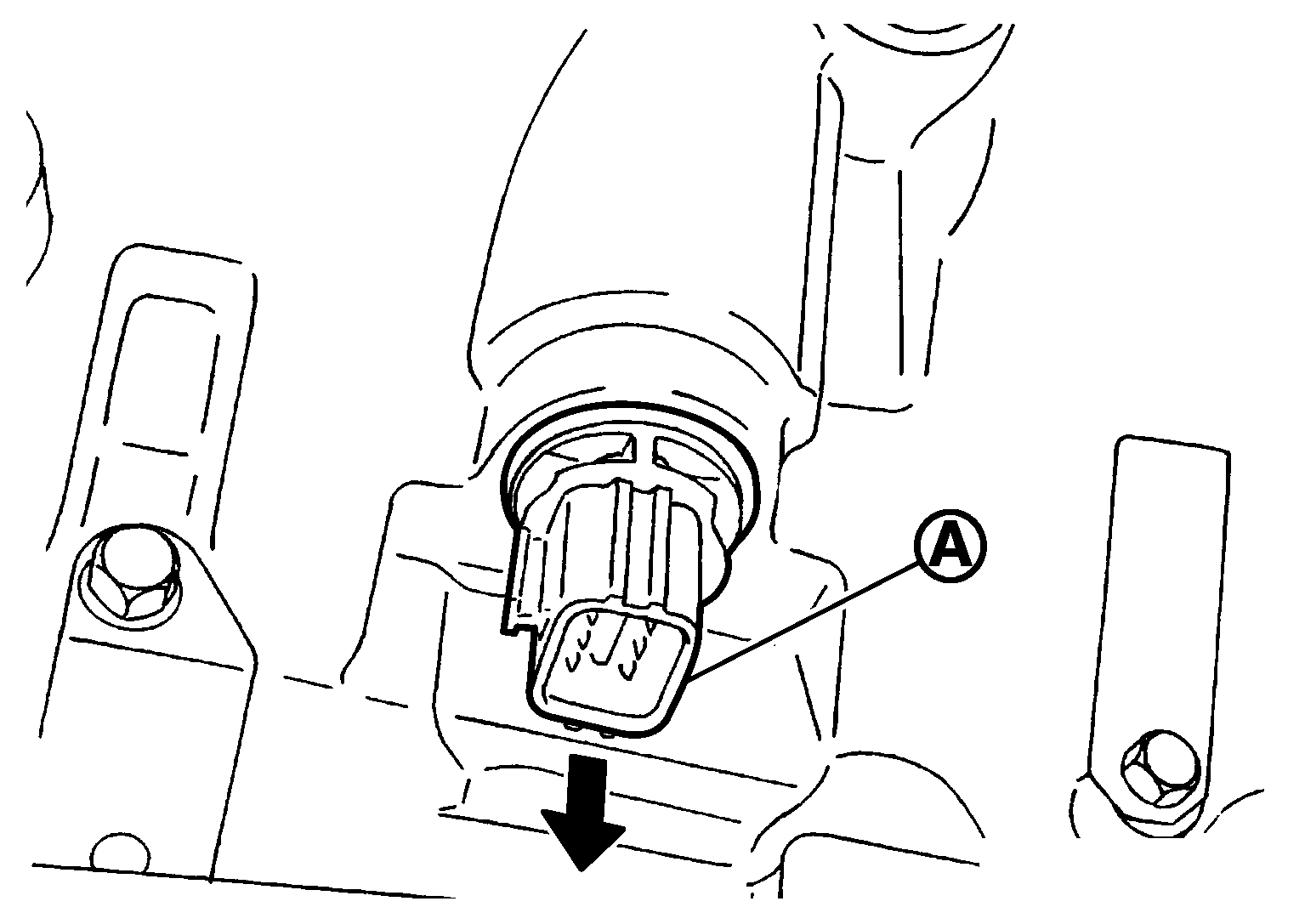

Pull down A/T assembly connector.
CAUTION: Be careful not to damage connector.

Fig 92: Pulling Down A/T Assembly Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Install snap ring to A/T assembly connector.

Fig 93: Locating A/T Assembly Connector Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.

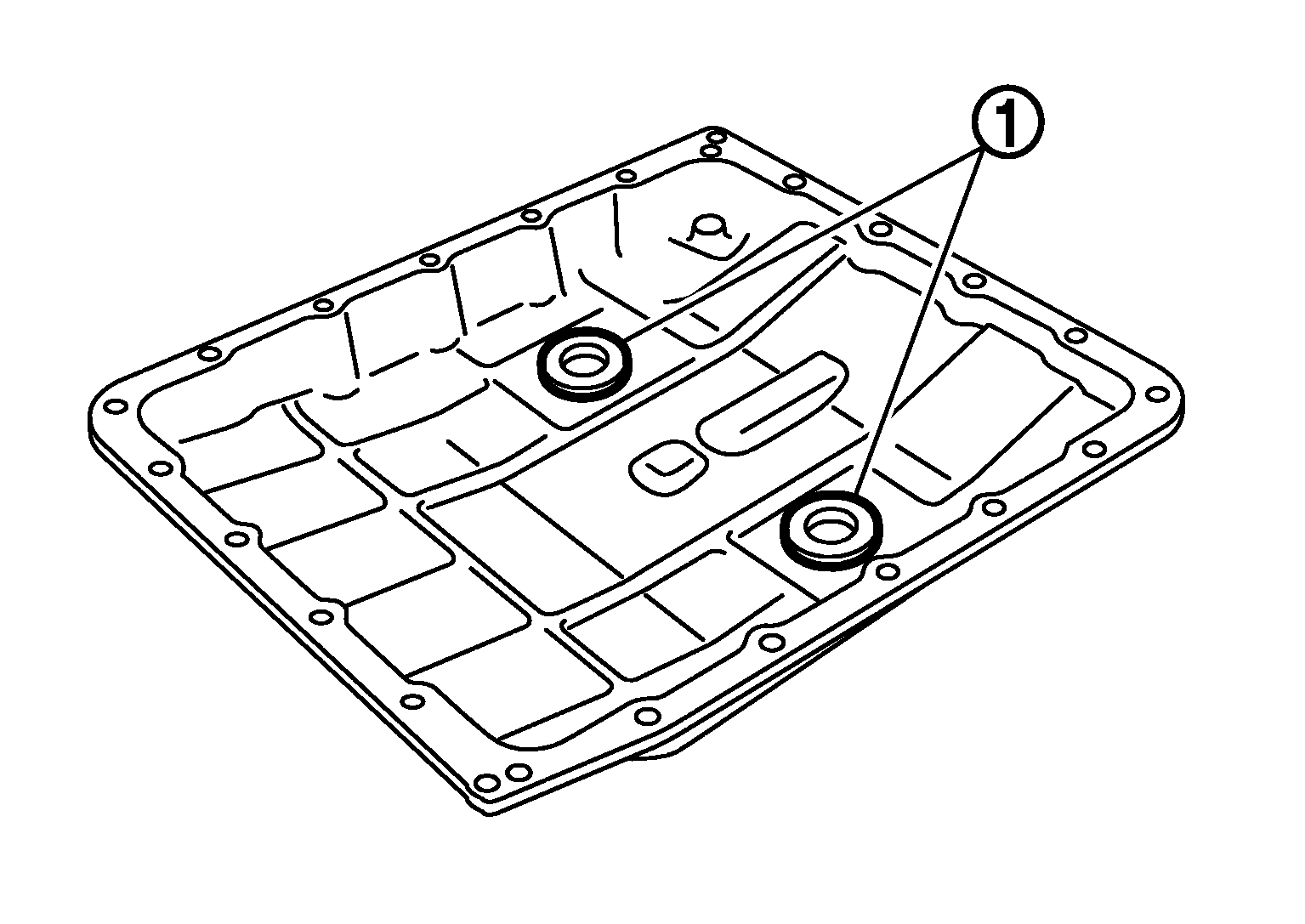

Install magnets (1) to oil pan.

Fig 94: Identifying Oil Pan Magnets
Courtesy of NISSAN MOTOR CO., U.S.A.
Install oil pan gasket to transmission case.
CAUTION:
- Do not reuse oil pan gasket.
- Install it in the direction to align hole positions.
- Completely remove all moisture, oil and old gasket, etc. from oil pan gasket mounting surface.
Install oil pan (2) and clips (1) to transmission case.

Fig 95: Locating Oil Pan Bolts And Clips
Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION:
- Install it so that drain plug comes to the position as shown in the figure.
- Be careful not to pinch harnesses.
- Completely remove all moisture, oil and old gasket, etc. from oil pan mounting surface.

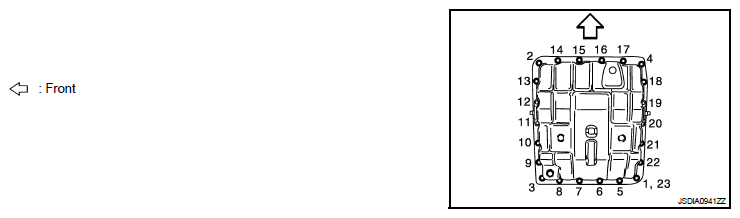

Tighten oil pan mounting bolts to the specified torque in numerical order shown in the figure after temporarily tightening them. Tighten oil pan mounting bolts to the specified torque.

Fig 96: Identifying Oil Pan Mounting Bolts Tightening Sequence
Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: Never reuse oil pan mounting bolts.
Install drain plug to oil pan. Tighten drain plug to the specified torque.
CAUTION: Never reuse drain plug gasket.
Pour ATF into torque converter.
- Approximately 2 liter (2-1/8 US qt, 1-3/4 Imp qt) of ATF is required for a new torque converter.
- When reusing old torque converter, add the same amount of ATF as was drained.

  Fig 97: Pouring ATF Into Torque Converter
  Courtesy of NISSAN MOTOR CO., U.S.A.
Install torque converter while aligning notches of torque converter with notches of oil pump.
CAUTION: Install torque converter while rotating it.

Fig 98: Identifying Torque Converter
Courtesy of NISSAN MOTOR CO., U.S.A.

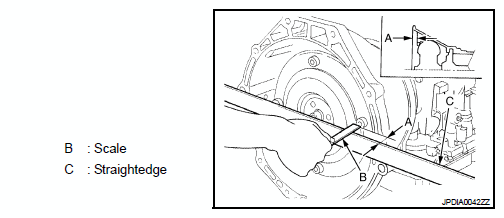

Measure dimension (A) to make sure that torque converter is in proper position.
Dimension (A) : Refer to "TORQUE CONVERTER ".

Fig 99: Identifying Torque Converter Dimension
Courtesy of NISSAN MOTOR CO., U.S.A.
