Infiniti
>>
2009
>>
EX35 Base, AWD
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Transmission
>>
Function Diagnosis
>>
A/T Control System
>>
System Description
>>
Lock-Up Control
>>
Lock-up control system diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Lock-up control system diagram

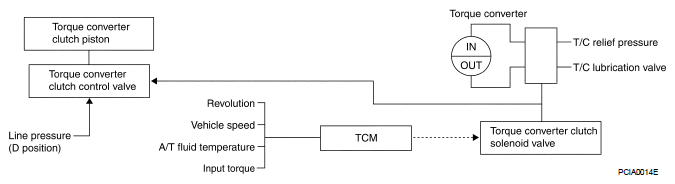

Fig 1: Lock-Up Control System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
