Automatic Transmission
>>
Function Diagnosis
>>
A/T Control System
>>
System Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Diagram

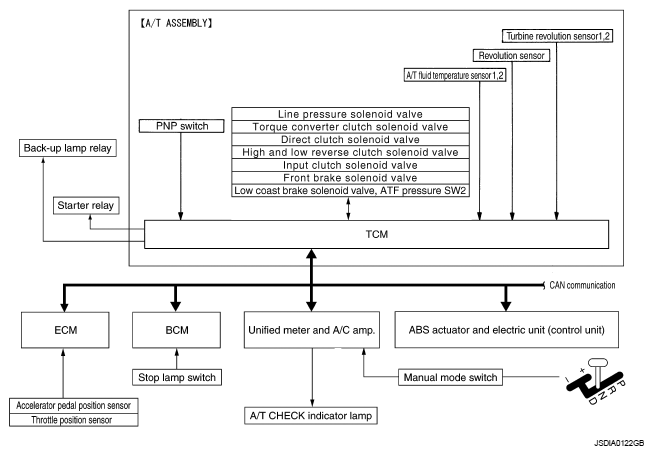

Fig 1: A/T Control System Diagram
