Exploded View

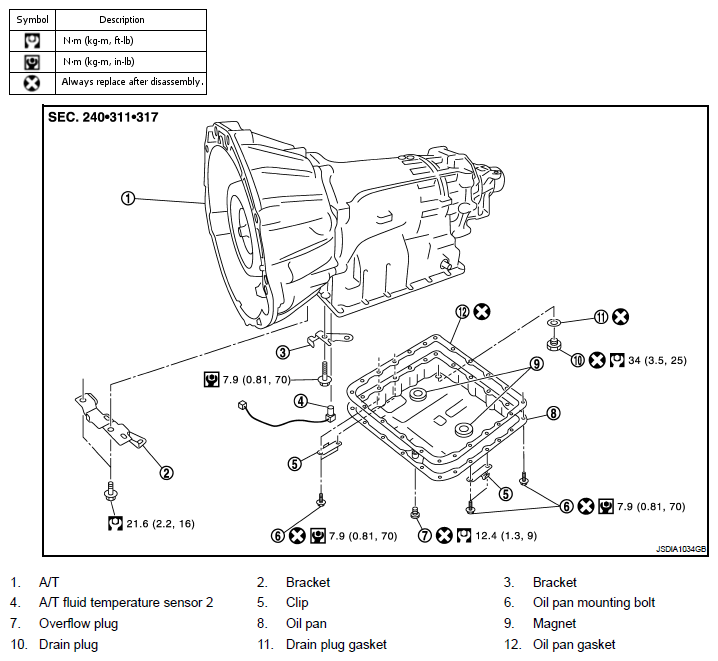

Fig 1: A/T Fluid Temperature Sensor 2 Replacement Components With Torque Specifications
G06300915Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
