AWD : Exploded View

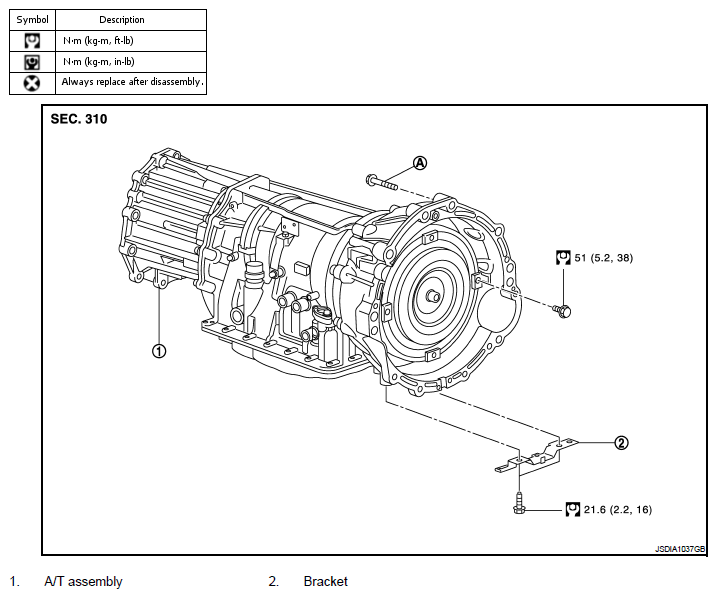

Fig 1: A/T Assembly And Bracket (AWD) With Torque Specifications
G06300972Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
