AWD Models

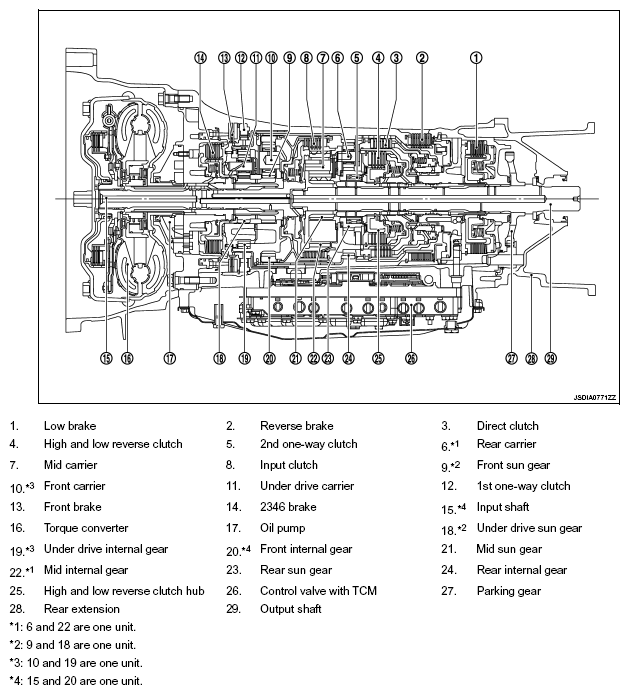

Fig 1: Cross-Sectional View Of Shift Mechanism (AWD Models)

Courtesy of NISSAN MOTOR CO., U.S.A.
