Component Parts Location

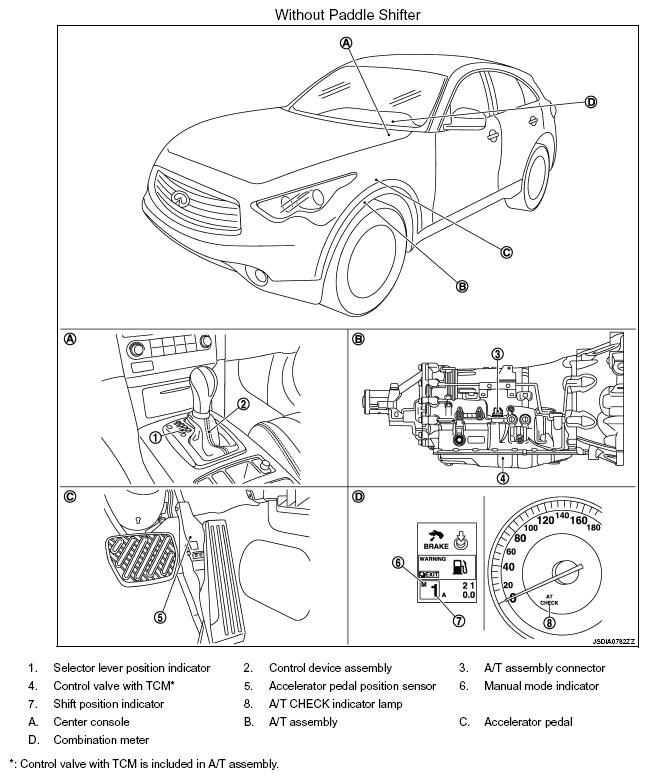

Fig 1: Identifying Shift Pattern Control Components (Without Paddle Shifter)
G05980304Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE:
  • The following components are included in control device assembly (2).
    • Manual mode select switch
    • Manual mode position select switch
    • Shift position switch
  • The following components are included in control valve with TCM (4).
  • TCM
  • Turbine revolution sensor 1, 2
  • Revolution sensor
  • A/T fluid temperature sensor
  • PNP switch
  • Direct clutch solenoid valve
  • High and low reverse clutch solenoid valve
  • Input clutch solenoid valve
  • Front brake solenoid valve
  • Low brake solenoid valve
  • Anti-interlock solenoid valve
  • 2346 brake solenoid valve
  • Line pressure solenoid valve
  • Torque converter clutch solenoid valve
  • ATF pressure sensor

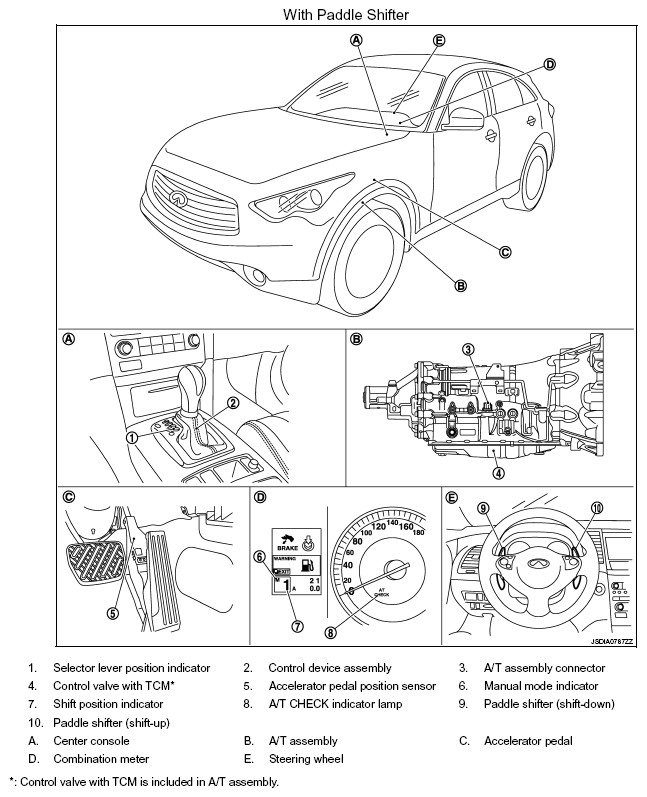

Fig 2: Identifying Shift Pattern Control Components (With Paddle Shifter)
G05980305Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE:
  • The following components are included in control device assembly (2).
    • Manual mode select switch
    • Manual mode position select switch
    • Shift position switch
  • The following components are included in control valve with TCM (4).
  • TCM
  • Turbine revolution sensor 1, 2
  • Revolution sensor
  • A/T fluid temperature sensor
  • PNP switch
  • Direct clutch solenoid valve
  • High and low reverse clutch solenoid valve
  • Input clutch solenoid valve
  • Front brake solenoid valve
  • Low brake solenoid valve
  • Anti-interlock solenoid valve
  • 2346 brake solenoid valve
  • Line pressure solenoid valve
  • Torque converter clutch solenoid valve
  • ATF pressure sensor
