2WD : Exploded View

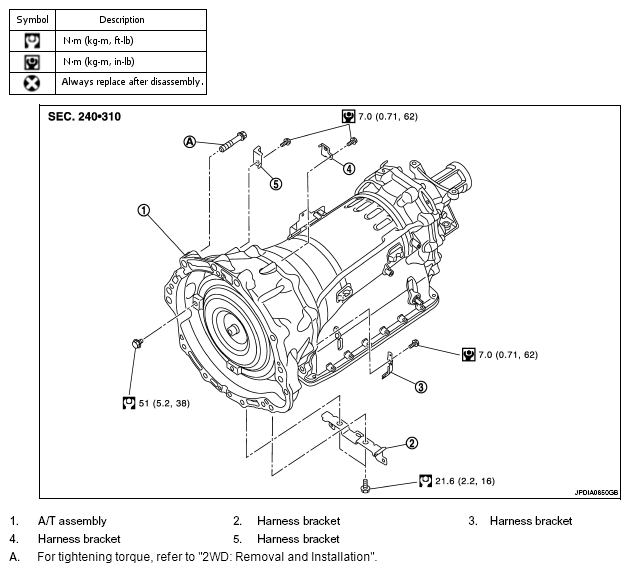

Fig 1: View Of 2WD Transmission Assembly With Torque Specifications
G05980384Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
