Repair and Diagnosis (Single Page)
>>
Body & Frame
>>
Windows
>>
Glass & Window System
>>
On-Vehicle Repair
>>
Front Regulator
>>
Exploded View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Exploded View

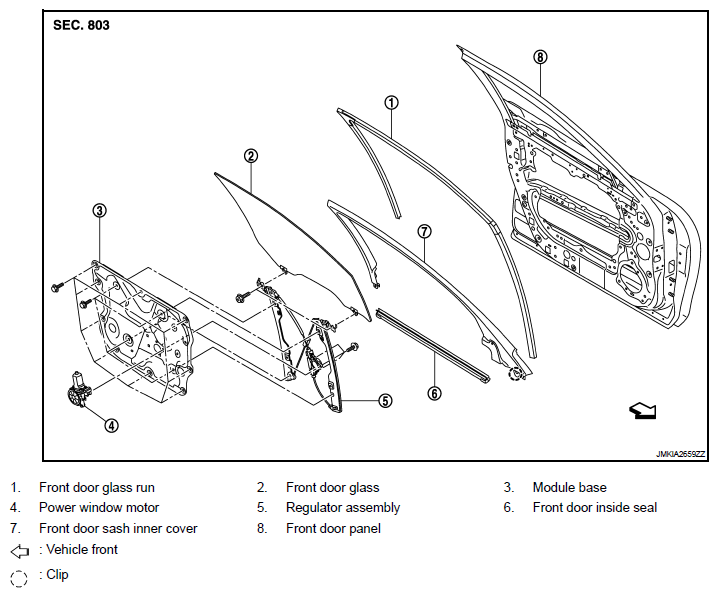

Fig 1: Exploded View Of Front Door
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
