Board-On Lift

CAUTION: Make sure vehicle is empty when lifting.
  • The board-on lift attachment (A) set at front end of vehicle should be set on the front of the sill under the front door opening.
  • Position attachments at front and rear ends of board-on lift.

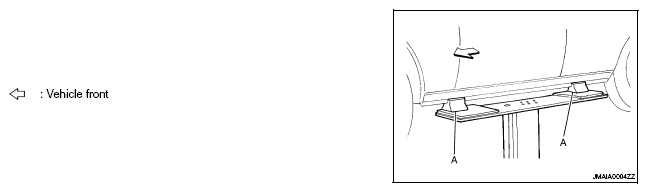

    Fig 1: Identifying Board-On Lift Points
    G05983604Courtesy of NISSAN MOTOR CO., U.S.A.
