Infiniti
>>
2009
>>
FX50
>>
Repair and Diagnosis
>>
Steering
>>
Steering Control Systems
>>
Steering Control System (With Rear Active Steer)
>>
Function Diagnosis
>>
RAS System
>>
System Diagram
>>
Cross-Sectional View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Cross-Sectional View

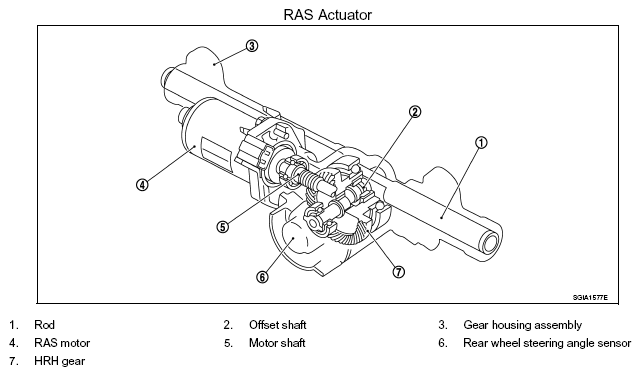

Fig 1: Cross-Sectional View Of RAS Actuator
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
