Component Parts Location

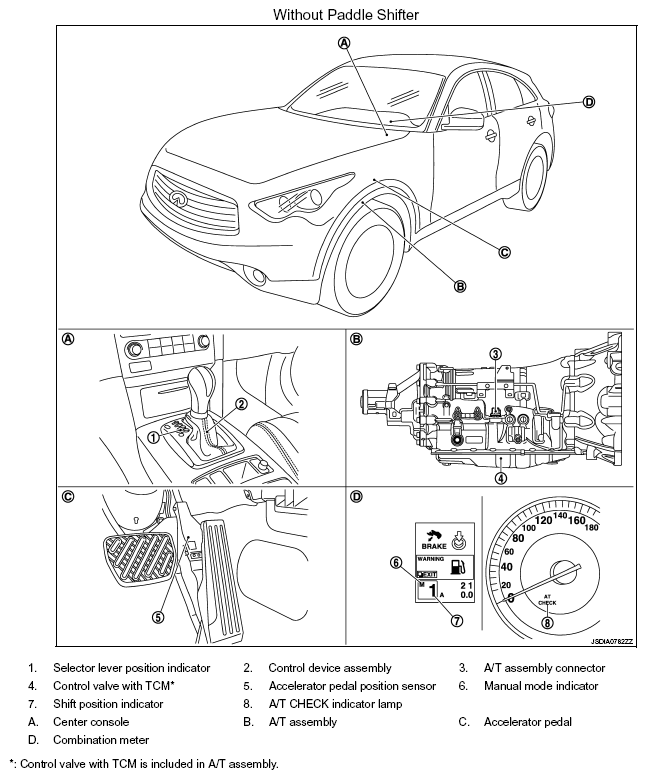

Fig 1: Identifying Shift Pattern Control Components (Without Paddle Shifter)

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE:

The following components are included in control device assembly (2).
- Manual mode select switch
- Manual mode position select switch
- Shift position switch
The following components are included in control valve with TCM (4).
- TCM
- Turbine revolution sensor 1, 2
- Revolution sensor
- A/T fluid temperature sensor
- PNP switch
- Direct clutch solenoid valve
- High and low reverse clutch solenoid valve
- Input clutch solenoid valve
- Front brake solenoid valve
- Low brake solenoid valve
- Anti-interlock solenoid valve
- 2346 brake solenoid valve
- Line pressure solenoid valve
- Torque converter clutch solenoid valve
- ATF pressure sensor

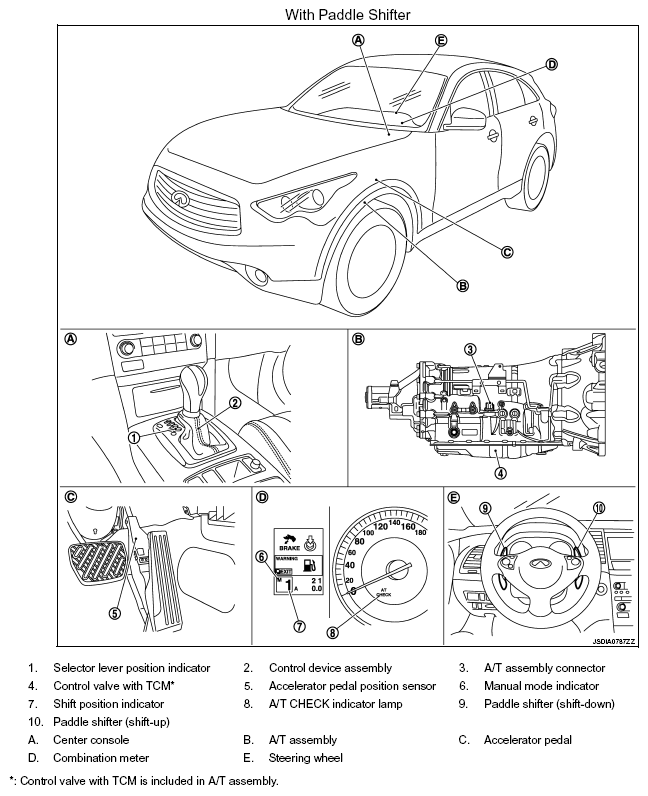

Fig 2: Identifying Shift Pattern Control Components (With Paddle Shifter)

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE:

The following components are included in control device assembly (2).
- Manual mode select switch
- Manual mode position select switch
- Shift position switch
The following components are included in control valve with TCM (4).
- TCM
- Turbine revolution sensor 1, 2
- Revolution sensor
- A/T fluid temperature sensor
- PNP switch
- Direct clutch solenoid valve
- High and low reverse clutch solenoid valve
- Input clutch solenoid valve
- Front brake solenoid valve
- Low brake solenoid valve
- Anti-interlock solenoid valve
- 2346 brake solenoid valve
- Line pressure solenoid valve
- Torque converter clutch solenoid valve
- ATF pressure sensor
